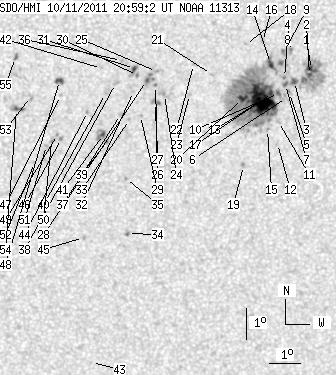

SDO HMI 2011-10-11 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.04 | 411.02 | 37.47 | 222.94 | -14.83 | 118.88 | 11.75 | 208.83 | 0.4096 | 308.3 | 283.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.72 | 50.22 | 2.57 | 27.38 | -14.03 | 121.14 | 14.01 | 214.49 | 0.4164 | 960.1 | 367.2 | |
| 1.75 | -1.00 | 0.95 | -1.00 | -14.19 | 121.08 | 13.95 | 214.17 | 0.4179 | 901.2 | 999999 | |
| 2.54 | 4.29 | 1.38 | 2.33 | -14.40 | 120.62 | 13.49 | 212.99 | 0.4166 | 904.7 | 822.2 | |
| 0.00 | 2.36 | 0.00 | 1.28 | -13.44 | 120.47 | 13.34 | 214.02 | 0.4027 | 735.0 | 704.7 | |
| 0.00 | 1.84 | 0.00 | 1.00 | -14.75 | 120.48 | 13.35 | 212.26 | 0.4201 | 611.0 | 501.3 | |
| 0.00 | 2.36 | 0.00 | 1.29 | -14.91 | 120.40 | 13.27 | 211.89 | 0.4215 | 476.0 | 323.2 | |
| 0.70 | 2.01 | 0.38 | 1.09 | -14.49 | 120.34 | 13.21 | 212.33 | 0.4154 | 1039.9 | 885.7 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -14.27 | 120.29 | 13.16 | 212.54 | 0.4120 | 1026.0 | 947.9 | |
| 0.00 | 2.54 | 0.00 | 1.37 | -13.47 | 120.22 | 13.08 | 213.48 | 0.4008 | 1070.0 | 889.7 | |
| 2.19 | 254.44 | 1.19 | 138.24 | -14.77 | 120.13 | 13.00 | 211.56 | 0.4175 | 857.1 | 525.6 | |
| 0.00 | 2.01 | 0.00 | 1.10 | -15.67 | 120.19 | 13.06 | 210.53 | 0.4301 | 522.0 | 330.7 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -16.39 | 120.21 | 13.08 | 209.71 | 0.4398 | -325.0 | -262.1 | |
| 1.49 | -10.00 | 0.81 | -10.00 | -14.77 | 119.94 | 12.81 | 211.19 | 0.4158 | 956.2 | 999999 | |
| 3.67 | -10.00 | 1.99 | -10.00 | -13.81 | 119.82 | 12.69 | 212.22 | 0.4019 | 990.8 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -15.92 | 119.86 | 12.73 | 209.59 | 0.4308 | 597.0 | 449.8 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -13.10 | 119.53 | 12.40 | 212.60 | 0.3899 | 823.0 | 593.0 | |
| 38.67 | -10.00 | 21.05 | -10.00 | -14.99 | 119.61 | 12.48 | 210.25 | 0.4160 | 1265.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -13.19 | 119.00 | 11.87 | 211.36 | 0.3865 | 930.0 | 649.0 | |
| 0.00 | 2.01 | 0.00 | 1.11 | -17.07 | 119.16 | 12.03 | 206.96 | 0.4415 | 732.0 | 635.5 | |
| 4.20 | -10.00 | 2.28 | -10.00 | -14.91 | 119.00 | 11.87 | 209.12 | 0.4102 | 1125.1 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.12 | 117.98 | 10.85 | 207.94 | 0.3914 | 758.0 | 621.2 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -13.79 | 117.40 | 10.27 | 207.05 | 0.3824 | 706.0 | 564.7 | |
| 0.00 | 1.66 | 0.00 | 0.90 | -14.74 | 117.32 | 10.19 | 205.75 | 0.3955 | -583.0 | -390.2 | |
| 0.00 | 4.99 | 0.00 | 2.68 | -14.73 | 116.54 | 9.40 | 204.01 | 0.3900 | -852.0 | -580.0 | |
| 0.00 | 1.75 | 0.00 | 0.94 | -13.99 | 116.25 | 9.12 | 204.18 | 0.3773 | -789.0 | -630.6 | |
| 0.00 | 4.55 | 0.00 | 2.45 | -14.98 | 116.26 | 9.13 | 203.13 | 0.3920 | -949.0 | -765.1 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -14.43 | 116.24 | 9.11 | 203.66 | 0.3838 | -964.0 | -737.3 | |
| 1.14 | 6.91 | 0.61 | 3.70 | -14.27 | 115.95 | 8.82 | 203.16 | 0.3795 | -1073.8 | -865.3 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -15.39 | 115.81 | 8.68 | 201.70 | 0.3953 | -721.0 | -568.0 | |
| 0.00 | 1.75 | 0.00 | 0.93 | -14.11 | 115.67 | 8.53 | 202.66 | 0.3753 | -1041.0 | -805.2 | |
| 1.40 | 4.37 | 0.75 | 2.33 | -13.88 | 115.56 | 8.43 | 202.65 | 0.3713 | -1034.9 | -960.5 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.61 | 115.56 | 8.43 | 201.88 | 0.3822 | -810.0 | -676.1 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -15.51 | 115.47 | 8.34 | 200.81 | 0.3951 | -801.0 | -636.2 | |
| 0.00 | 2.19 | 0.00 | 1.21 | -19.23 | 115.58 | 8.45 | 197.99 | 0.4512 | 907.0 | 781.2 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -17.42 | 115.43 | 8.30 | 199.06 | 0.4235 | -704.0 | -590.8 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -13.62 | 115.15 | 8.02 | 201.92 | 0.3648 | -707.0 | -538.4 | |
| 0.00 | 2.36 | 0.00 | 1.27 | -15.35 | 115.18 | 8.05 | 200.30 | 0.3910 | -775.0 | -626.9 | |
| 0.00 | 2.62 | 0.00 | 1.40 | -14.35 | 114.99 | 7.86 | 200.78 | 0.3749 | -812.0 | -618.0 | |
| 0.00 | 1.57 | 0.00 | 0.85 | -16.21 | 114.78 | 7.65 | 198.62 | 0.4019 | -828.0 | -703.3 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.66 | 114.69 | 7.56 | 199.76 | 0.3780 | -860.0 | -743.8 | |
| 1.84 | 8.66 | 0.99 | 4.67 | -15.98 | 114.67 | 7.54 | 198.57 | 0.3980 | -934.5 | -784.4 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -13.86 | 114.54 | 7.41 | 200.14 | 0.3650 | -886.0 | -745.3 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -23.58 | 114.65 | 7.52 | 193.63 | 0.5112 | 683.0 | 508.9 | |
| 0.00 | 1.49 | 0.00 | 0.80 | -15.23 | 114.15 | 7.01 | 197.96 | 0.3839 | -965.0 | -789.5 | |
| 0.00 | 1.40 | 0.00 | 0.77 | -19.35 | 114.18 | 7.05 | 195.09 | 0.4466 | -751.0 | -684.4 | |
| 0.00 | 1.57 | 0.00 | 0.85 | -16.09 | 113.36 | 6.23 | 195.43 | 0.3935 | -961.0 | -822.8 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.71 | 113.29 | 6.16 | 196.28 | 0.3717 | -736.0 | -529.9 | |
| 3.59 | 4.20 | 1.91 | 2.23 | -14.23 | 113.24 | 6.11 | 196.55 | 0.3640 | -1017.7 | -941.3 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -15.96 | 113.23 | 6.10 | 195.22 | 0.3909 | -975.0 | -755.8 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -16.19 | 113.05 | 5.92 | 194.64 | 0.3937 | -950.0 | -852.2 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -16.32 | 112.90 | 5.77 | 194.19 | 0.3951 | -880.0 | -721.7 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -16.86 | 112.54 | 5.41 | 193.01 | 0.4022 | -797.0 | -607.2 | |
| 0.00 | 2.71 | 0.00 | 1.44 | -14.73 | 112.36 | 5.23 | 193.90 | 0.3681 | -585.0 | -637.1 | |
| 1.14 | 6.39 | 0.61 | 3.41 | -15.14 | 111.93 | 4.80 | 192.56 | 0.3731 | -990.5 | -645.3 | |
| 0.00 | 2.62 | 0.00 | 1.39 | -13.48 | 111.86 | 4.73 | 193.45 | 0.3464 | 867.0 | 761.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
