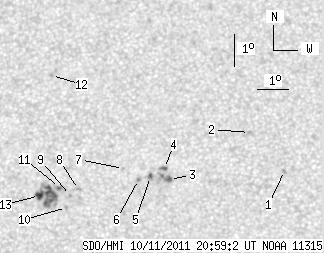

SDO HMI 2011-10-11 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.87 | 58.55 | 4.02 | 29.90 | 19.84 | 109.72 | 2.59 | 350.26 | 0.2443 | 191.3 | 400.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.84 | 0.00 | 0.95 | 20.22 | 115.92 | 8.79 | 329.61 | 0.2847 | 812.0 | 690.4 | |
| 0.00 | 1.49 | 0.00 | 0.77 | 21.41 | 114.85 | 7.72 | 334.67 | 0.2938 | 851.0 | 650.9 | |
| 1.92 | 9.19 | 0.99 | 4.70 | 19.99 | 112.22 | 5.09 | 340.83 | 0.2550 | -1003.9 | -868.7 | |
| 0.70 | 2.89 | 0.36 | 1.48 | 20.33 | 112.07 | 4.94 | 341.80 | 0.2597 | -855.9 | -677.1 | |
| 0.79 | 1.92 | 0.40 | 0.99 | 20.08 | 111.62 | 4.49 | 343.08 | 0.2534 | -1121.0 | -995.0 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 20.00 | 111.23 | 4.10 | 344.35 | 0.2502 | -946.0 | -788.6 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 20.34 | 110.76 | 3.63 | 346.41 | 0.2538 | -771.0 | -544.4 | |
| 0.00 | 2.19 | 0.00 | 1.12 | 19.70 | 109.31 | 2.18 | 351.31 | 0.2384 | 703.0 | 560.8 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 19.51 | 109.06 | 1.93 | 352.20 | 0.2347 | 1023.0 | 816.2 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 19.15 | 108.93 | 1.80 | 352.51 | 0.2282 | 885.0 | 661.8 | |
| 0.00 | 2.19 | 0.00 | 1.12 | 19.76 | 108.71 | 1.58 | 353.72 | 0.2381 | 838.0 | 764.8 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 23.24 | 108.49 | 1.36 | 355.77 | 0.2962 | 952.0 | 764.1 | |
| 4.46 | 30.10 | 2.27 | 15.33 | 19.52 | 108.07 | 0.94 | 356.17 | 0.2330 | 993.1 | 890.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
