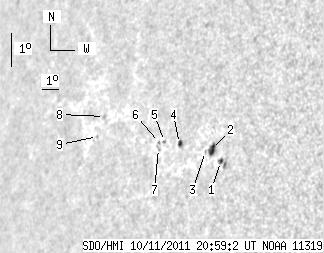

SDO HMI 2011-10-11 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.74 | 22.56 | 7.78 | 20.73 | 9.52 | 49.27 | -57.86 | 82.59 | 0.8435 | -201.1 | -153.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.40 | 5.69 | 1.22 | 4.93 | 9.29 | 51.37 | -55.76 | 82.93 | 0.8243 | -634.1 | -479.0 | |
| 5.42 | 6.39 | 4.78 | 5.63 | 9.60 | 50.80 | -56.33 | 82.54 | 0.8298 | -537.8 | -476.7 | |
| 0.00 | 1.31 | 0.00 | 1.17 | 9.52 | 50.49 | -56.64 | 82.64 | 0.8328 | -231.0 | -141.9 | |
| 1.92 | 2.71 | 1.78 | 2.51 | 9.62 | 48.98 | -58.15 | 82.48 | 0.8468 | 414.1 | 415.1 | |
| 0.00 | 1.05 | 0.00 | 1.00 | 9.60 | 48.11 | -59.02 | 82.48 | 0.8548 | -421.0 | -387.1 | |
| 0.00 | 1.22 | 0.00 | 1.17 | 9.55 | 47.83 | -59.30 | 82.53 | 0.8573 | -36.0 | -95.1 | |
| 0.00 | 1.57 | 0.00 | 1.51 | 9.37 | 47.82 | -59.31 | 82.75 | 0.8574 | -392.0 | -309.1 | |
| 0.00 | 1.57 | 0.00 | 1.68 | 10.00 | 44.20 | -62.93 | 81.90 | 0.8877 | 321.0 | 248.9 | |
| 0.00 | 1.05 | 0.00 | 1.13 | 9.37 | 43.94 | -63.20 | 82.60 | 0.8899 | 595.0 | 533.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
