SDO HMI 2011-10-11 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.48 | 0.00 | 6.03 | 21.26 | 94.40 | -12.18 | 36.54 | 0.3300 | 223.8 | 141.0 | |
|
previous
or next observation for the same group /

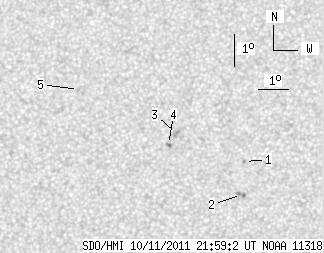

back to the solar disc SDO HMI 2011-10-11 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.64 | 20.91 | 96.33 | -10.24 | 32.92 | 0.3070 | 794.0 | 653.6 | |
| 0.00 | 3.24 | 0.00 | 1.68 | 19.89 | 96.31 | -10.27 | 35.02 | 0.2936 | -975.0 | -802.6 | |
| 0.00 | 3.59 | 0.00 | 1.89 | 21.73 | 94.04 | -12.54 | 36.63 | 0.3394 | 943.0 | 722.0 | |
| 0.00 | 1.84 | 0.00 | 0.97 | 21.38 | 93.81 | -12.77 | 37.79 | 0.3374 | 1069.0 | 910.4 | |
| 0.00 | 1.58 | 0.00 | 0.85 | 23.02 | 90.63 | -15.94 | 40.67 | 0.3896 | -712.0 | -550.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
