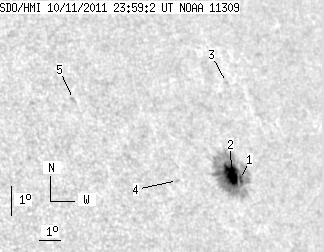

SDO HMI 2011-10-11 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.83 | 115.98 | 15.94 | 88.42 | 23.25 | 153.84 | 48.36 | 295.49 | 0.7630 | -684.8 | -325.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.71 | 111.42 | 2.09 | 85.11 | 23.01 | 154.27 | 48.80 | 295.06 | 0.7668 | -589.8 | -353.5 | |
| 18.12 | -1.00 | 13.85 | -1.00 | 23.19 | 153.92 | 48.44 | 295.39 | 0.7637 | -896.8 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.83 | 26.05 | 155.19 | 49.71 | 298.66 | 0.7833 | -465.0 | -354.2 | |
| 0.00 | 1.23 | 0.00 | 0.89 | 23.20 | 151.32 | 45.85 | 296.12 | 0.7368 | 618.0 | 507.1 | |
| 0.00 | 2.28 | 0.00 | 1.59 | 26.04 | 147.81 | 42.33 | 301.14 | 0.7093 | 530.0 | 430.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
