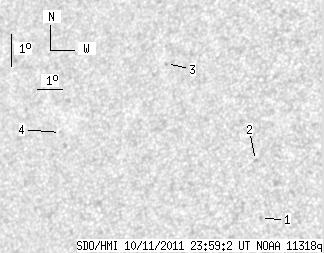

SDO HMI 2011-10-11 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.30 | 0.00 | 2.70 | 15.88 | 68.17 | -37.31 | 71.95 | 0.6147 | -601.0 | -485.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.74 | 13.77 | 70.97 | -34.51 | 74.63 | 0.5728 | -735.0 | -552.3 | |
| 0.00 | 1.23 | 0.00 | 0.75 | 15.51 | 70.46 | -35.01 | 71.82 | 0.5841 | -653.0 | -477.6 | |
| 0.00 | 1.23 | 0.00 | 0.79 | 18.22 | 66.34 | -39.13 | 68.82 | 0.6452 | -555.0 | -487.4 | |
| 0.00 | 0.61 | 0.00 | 0.42 | 15.84 | 62.57 | -42.91 | 73.32 | 0.6861 | -461.0 | -378.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
