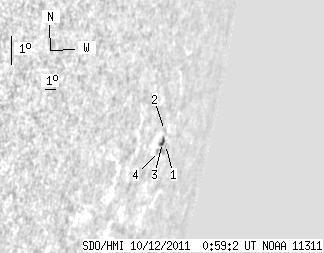

SDO HMI 2011-10-12 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.84 | 11.99 | 4.03 | 26.40 | -11.31 | 180.30 | 75.38 | 256.86 | 0.9753 | 208.3 | 39.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.10 | 0.00 | 4.77 | -11.35 | 180.75 | 75.83 | 256.90 | 0.9770 | -468.0 | -303.4 | |
| 0.00 | 1.75 | 0.00 | 3.83 | -10.86 | 180.25 | 75.33 | 257.31 | 0.9749 | 287.0 | 222.4 | |
| 1.84 | 3.24 | 4.03 | 7.10 | -11.24 | 180.29 | 75.37 | 256.93 | 0.9752 | 325.0 | 197.7 | |
| 0.00 | 4.90 | 0.00 | 10.70 | -11.50 | 180.13 | 75.20 | 256.64 | 0.9748 | 336.0 | 82.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
