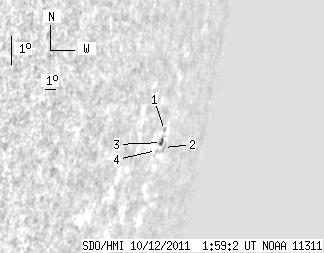

SDO HMI 2011-10-12 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.84 | 8.59 | 4.18 | 19.79 | -11.29 | 180.37 | 75.99 | 256.99 | 0.9775 | 210.6 | -31.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 2.82 | -10.87 | 180.35 | 75.98 | 257.40 | 0.9773 | 245.0 | 189.6 | |
| 0.00 | 3.15 | 0.00 | 7.48 | -11.43 | 180.68 | 76.31 | 256.89 | 0.9787 | -311.0 | -265.7 | |
| 1.84 | 2.98 | 4.18 | 6.77 | -11.24 | 180.26 | 75.88 | 257.02 | 0.9771 | 321.5 | 104.2 | |
| 0.00 | 1.23 | 0.00 | 2.72 | -11.43 | 179.79 | 75.41 | 256.75 | 0.9755 | 234.0 | 255.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
