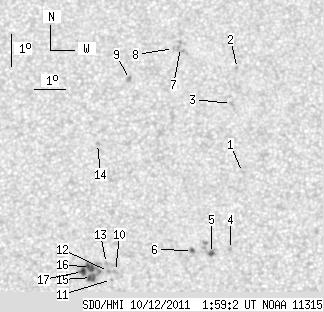

SDO HMI 2011-10-12 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.10 | 57.70 | 7.20 | 29.79 | 21.27 | 110.03 | 5.65 | 340.87 | 0.2794 | 585.0 | 394.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.46 | 22.47 | 113.33 | 8.96 | 333.03 | 0.3187 | 725.0 | 619.3 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 25.75 | 113.40 | 9.03 | 337.26 | 0.3671 | 695.0 | 648.3 | |
| 0.00 | 2.01 | 0.00 | 1.06 | 24.64 | 113.12 | 8.74 | 336.57 | 0.3490 | 761.0 | 583.6 | |
| 0.00 | 1.75 | 0.00 | 0.90 | 20.09 | 112.80 | 8.43 | 330.43 | 0.2801 | -832.0 | -606.6 | |
| 0.88 | 8.67 | 0.45 | 4.46 | 19.98 | 112.19 | 7.81 | 332.03 | 0.2735 | -1068.5 | -783.9 | |
| 1.40 | 2.01 | 0.72 | 1.04 | 20.08 | 111.58 | 7.20 | 334.05 | 0.2704 | -943.8 | -992.9 | |
| 0.00 | 5.78 | 0.00 | 3.07 | 26.44 | 111.53 | 7.16 | 342.23 | 0.3671 | 545.0 | 723.3 | |
| 0.00 | 1.58 | 0.00 | 0.84 | 26.41 | 111.29 | 6.92 | 342.75 | 0.3655 | 776.0 | 602.2 | |
| 0.00 | 3.15 | 0.00 | 1.66 | 25.44 | 109.77 | 5.39 | 345.63 | 0.3435 | 1009.0 | 792.1 | |
| 0.00 | 2.36 | 0.00 | 1.21 | 19.46 | 109.10 | 4.72 | 341.44 | 0.2448 | 934.0 | 709.4 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 19.21 | 108.96 | 4.59 | 341.59 | 0.2402 | 756.0 | 542.1 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 19.46 | 108.87 | 4.50 | 342.26 | 0.2437 | 928.0 | 687.9 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 19.71 | 108.82 | 4.44 | 342.78 | 0.2474 | 696.0 | 513.3 | |
| 0.00 | 1.49 | 0.00 | 0.77 | 23.44 | 108.64 | 4.26 | 347.11 | 0.3070 | 765.0 | 588.5 | |
| 3.94 | 23.11 | 2.01 | 11.79 | 19.28 | 108.33 | 3.95 | 344.07 | 0.2381 | 1067.7 | 896.7 | |
| 4.64 | -15.00 | 2.37 | -15.00 | 19.59 | 108.30 | 3.93 | 344.53 | 0.2430 | 1039.9 | 999999 | |
| 3.24 | -15.00 | 1.65 | -15.00 | 19.47 | 108.05 | 3.67 | 345.36 | 0.2399 | 1017.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
