SDO HMI 2011-10-12 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.38 | 21.01 | 2.27 | 10.87 | 20.60 | 95.98 | -8.40 | 28.37 | 0.2874 | -190.2 | -264.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

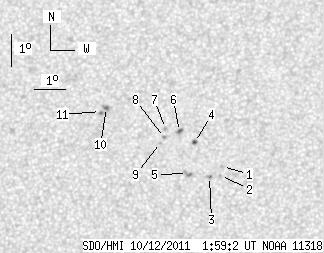

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.67 | 19.93 | 97.73 | -6.65 | 24.44 | 0.2641 | -815.0 | -515.3 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 19.65 | 97.68 | -6.70 | 25.08 | 0.2603 | -798.0 | -522.1 | |
| 0.00 | 1.84 | 0.00 | 0.94 | 19.62 | 97.33 | -7.05 | 26.27 | 0.2623 | -1034.0 | -827.2 | |
| 1.75 | 1.84 | 0.90 | 0.95 | 20.66 | 96.80 | -7.58 | 26.10 | 0.2818 | 825.2 | 581.0 | |
| 0.00 | 3.76 | 0.00 | 1.94 | 19.70 | 96.62 | -7.76 | 28.33 | 0.2690 | -824.0 | -746.9 | |
| 1.58 | 2.63 | 0.82 | 1.36 | 20.99 | 96.29 | -8.08 | 26.99 | 0.2905 | 809.9 | 706.2 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 21.08 | 95.84 | -8.54 | 28.12 | 0.2953 | -932.0 | -792.9 | |
| 0.00 | 1.58 | 0.00 | 0.82 | 20.80 | 95.82 | -8.56 | 28.65 | 0.2914 | -847.0 | -571.6 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 20.65 | 95.70 | -8.68 | 29.26 | 0.2901 | -683.0 | -506.7 | |
| 0.61 | 2.45 | 0.32 | 1.28 | 21.70 | 93.87 | -10.50 | 32.08 | 0.3203 | 1017.4 | 767.3 | |
| 0.44 | 2.28 | 0.23 | 1.19 | 21.57 | 93.69 | -10.69 | 32.76 | 0.3202 | 845.0 | 717.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
