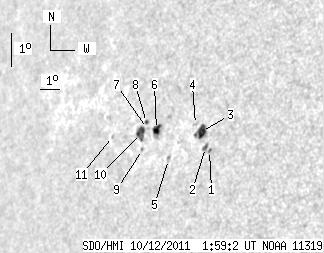

SDO HMI 2011-10-12 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.00 | 41.23 | 17.88 | 35.04 | 9.57 | 49.60 | -54.78 | 82.58 | 0.8143 | -355.0 | -157.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 1.06 | 9.29 | 51.87 | -52.51 | 82.97 | 0.7912 | -801.0 | -606.4 | |
| 0.00 | 2.54 | 0.00 | 2.06 | 9.36 | 51.65 | -52.73 | 82.88 | 0.7935 | -797.0 | -577.6 | |
| 7.70 | 9.81 | 6.28 | 8.00 | 9.82 | 51.34 | -53.03 | 82.30 | 0.7967 | -669.9 | -435.0 | |
| 0.00 | 1.66 | 0.00 | 1.37 | 10.00 | 51.00 | -53.38 | 82.07 | 0.8003 | -515.0 | -399.9 | |
| 0.00 | 2.28 | 0.00 | 1.92 | 8.85 | 49.86 | -54.52 | 83.49 | 0.8120 | -591.0 | -403.0 | |
| 4.46 | 9.19 | 3.84 | 7.91 | 9.68 | 49.03 | -55.35 | 82.45 | 0.8202 | 526.9 | 462.7 | |
| 0.00 | 1.23 | 0.00 | 1.07 | 9.67 | 48.54 | -55.83 | 82.46 | 0.8249 | -613.0 | -424.2 | |
| 0.96 | 1.31 | 0.84 | 1.15 | 9.85 | 48.44 | -55.93 | 82.24 | 0.8259 | -282.2 | -280.0 | |
| 0.00 | 1.31 | 0.00 | 1.15 | 9.03 | 48.43 | -55.95 | 83.24 | 0.8262 | -181.0 | -213.7 | |
| 7.88 | 9.28 | 6.92 | 8.15 | 9.49 | 48.21 | -56.17 | 82.67 | 0.8282 | -488.4 | -278.2 | |
| 0.00 | 1.31 | 0.00 | 1.20 | 9.27 | 46.70 | -57.68 | 82.90 | 0.8426 | 465.0 | 373.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
