SDO HMI 2011-10-12 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.21 | 122.84 | 14.35 | 96.48 | 23.24 | 153.75 | 49.93 | 295.10 | 0.7787 | -540.0 | -296.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

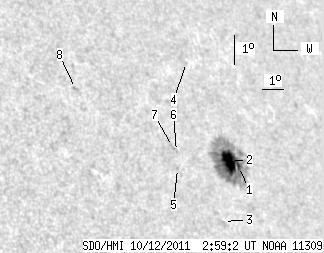

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.66 | 116.80 | 1.32 | 91.97 | 23.00 | 154.24 | 50.42 | 294.68 | 0.7830 | -537.1 | -333.8 | |
| 16.55 | -1.00 | 13.03 | -1.00 | 23.19 | 153.88 | 50.05 | 295.00 | 0.7798 | -940.9 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 21.38 | 152.71 | 48.88 | 292.97 | 0.7642 | 464.0 | 388.7 | |
| 0.00 | 0.70 | 0.00 | 0.56 | 26.41 | 153.44 | 49.62 | 299.15 | 0.7834 | -568.0 | -495.0 | |
| 0.00 | 1.23 | 0.00 | 0.92 | 23.17 | 151.29 | 47.46 | 295.63 | 0.7536 | 632.0 | 506.6 | |
| 0.00 | 0.35 | 0.00 | 0.26 | 23.69 | 151.49 | 47.66 | 296.25 | 0.7571 | 305.0 | 392.5 | |
| 0.00 | 1.49 | 0.00 | 1.12 | 23.86 | 151.38 | 47.55 | 296.50 | 0.7563 | 502.0 | 405.2 | |
| 0.00 | 2.01 | 0.00 | 1.45 | 25.99 | 147.79 | 43.96 | 300.44 | 0.7261 | 646.0 | 481.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
