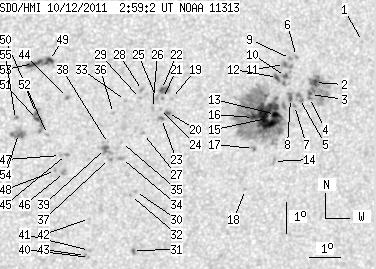

SDO HMI 2011-10-12 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.06 | 389.60 | 32.84 | 213.98 | -14.85 | 118.39 | 14.56 | 214.15 | 0.4335 | 141.2 | 294.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.44 | -12.68 | 122.58 | 18.75 | 224.72 | 0.4476 | 643.0 | 528.4 | |
| 4.90 | 42.81 | 2.71 | 23.73 | -13.93 | 121.13 | 17.30 | 220.48 | 0.4464 | 988.8 | 351.1 | |
| 0.96 | -2.00 | 0.53 | -2.00 | -14.31 | 121.03 | 17.20 | 219.76 | 0.4499 | 955.8 | 999999 | |
| 1.23 | -2.00 | 0.68 | -2.00 | -14.41 | 121.00 | 17.17 | 219.58 | 0.4508 | 627.2 | 999999 | |
| 0.00 | 5.69 | 0.00 | 3.15 | -14.43 | 120.68 | 16.85 | 219.02 | 0.4479 | 595.0 | 686.7 | |
| 0.00 | 1.75 | 0.00 | 0.96 | -13.09 | 120.48 | 16.66 | 220.70 | 0.4299 | 795.0 | 645.6 | |
| 0.00 | 1.66 | 0.00 | 0.92 | -14.65 | 120.54 | 16.71 | 218.46 | 0.4491 | 673.0 | 539.5 | |
| 1.84 | 4.38 | 1.02 | 2.42 | -14.42 | 120.39 | 16.56 | 218.54 | 0.4449 | 922.4 | 884.6 | |
| 0.00 | 2.01 | 0.00 | 1.10 | -13.15 | 120.30 | 16.47 | 220.29 | 0.4287 | 973.0 | 780.4 | |
| 1.49 | 12.08 | 0.82 | 6.64 | -13.71 | 120.17 | 16.35 | 219.22 | 0.4343 | 956.6 | 769.5 | |
| 1.75 | 5.25 | 0.96 | 2.88 | -13.33 | 120.12 | 16.29 | 219.70 | 0.4291 | 911.6 | 789.8 | |
| 2.45 | -10.00 | 1.35 | -10.00 | -13.74 | 119.92 | 16.09 | 218.75 | 0.4320 | 976.9 | 999999 | |
| 3.24 | 204.79 | 1.79 | 113.03 | -14.92 | 119.94 | 16.12 | 217.08 | 0.4467 | 1115.0 | 584.2 | |
| 0.00 | 2.80 | 0.00 | 1.57 | -16.43 | 120.00 | 16.18 | 215.15 | 0.4660 | 532.0 | 487.9 | |
| 19.44 | -13.00 | 10.74 | -13.00 | -15.04 | 119.66 | 15.84 | 216.44 | 0.4456 | 1209.7 | 999999 | |
| 2.63 | -13.00 | 1.45 | -13.00 | -14.99 | 119.24 | 15.41 | 215.76 | 0.4411 | 1102.7 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.46 | -15.99 | 119.32 | 15.49 | 214.57 | 0.4544 | 757.0 | 627.2 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -17.32 | 119.17 | 15.34 | 212.66 | 0.4700 | 754.0 | 572.1 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -14.31 | 116.58 | 12.75 | 211.69 | 0.4089 | -655.0 | -503.7 | |
| 0.70 | 3.59 | 0.38 | 1.95 | -14.76 | 116.48 | 12.65 | 210.91 | 0.4141 | -819.4 | -550.0 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -14.31 | 116.29 | 12.47 | 211.12 | 0.4065 | -800.0 | -691.1 | |
| 1.75 | 5.78 | 0.95 | 3.13 | -14.02 | 116.25 | 12.42 | 211.41 | 0.4022 | -1015.2 | -772.5 | |
| 1.66 | 2.54 | 0.90 | 1.38 | -14.95 | 116.30 | 12.47 | 210.31 | 0.4152 | -679.9 | -551.8 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -14.62 | 116.25 | 12.42 | 210.62 | 0.4104 | -626.0 | -608.3 | |
| 0.00 | 2.19 | 0.00 | 1.18 | -14.27 | 116.10 | 12.28 | 210.78 | 0.4044 | -862.0 | -722.2 | |
| 0.00 | 1.66 | 0.00 | 0.90 | -14.62 | 116.00 | 12.17 | 210.11 | 0.4083 | -823.0 | -697.5 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -15.41 | 115.76 | 11.93 | 208.65 | 0.4174 | -747.0 | -584.9 | |
| 0.00 | 1.93 | 0.00 | 1.04 | -14.04 | 115.65 | 11.82 | 210.14 | 0.3975 | -1108.0 | -911.7 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -14.29 | 115.60 | 11.77 | 209.71 | 0.4006 | -880.0 | -678.0 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -17.29 | 115.62 | 11.79 | 206.28 | 0.4425 | -894.0 | -713.5 | |
| 0.61 | 2.10 | 0.34 | 1.18 | -19.23 | 115.66 | 11.83 | 204.44 | 0.4698 | 793.7 | 783.7 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -17.42 | 115.47 | 11.64 | 205.86 | 0.4432 | -715.0 | -572.5 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -14.34 | 115.13 | 11.30 | 208.65 | 0.3977 | -692.0 | -501.2 | |
| 0.00 | 3.33 | 0.00 | 1.82 | -16.21 | 115.10 | 11.28 | 206.43 | 0.4237 | -721.0 | -566.3 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -15.69 | 115.07 | 11.25 | 206.94 | 0.4162 | -768.0 | -634.3 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -14.75 | 114.77 | 10.94 | 207.39 | 0.4008 | -836.0 | -661.7 | |
| 0.00 | 2.36 | 0.00 | 1.29 | -16.20 | 114.72 | 10.90 | 205.66 | 0.4210 | -517.0 | -556.1 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -15.71 | 114.66 | 10.84 | 206.07 | 0.4137 | -639.0 | -620.8 | |
| 2.54 | 7.97 | 1.38 | 4.34 | -15.87 | 114.58 | 10.75 | 205.71 | 0.4153 | -985.3 | -693.8 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -19.43 | 114.28 | 10.45 | 201.72 | 0.4643 | -733.0 | -547.2 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -19.20 | 114.26 | 10.44 | 201.89 | 0.4609 | -589.0 | -330.5 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -18.14 | 114.20 | 10.37 | 202.69 | 0.4454 | -674.0 | -546.6 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -19.36 | 114.15 | 10.32 | 201.52 | 0.4626 | -749.0 | -571.0 | |
| 0.00 | 1.75 | 0.00 | 0.94 | -14.21 | 113.30 | 9.47 | 204.76 | 0.3826 | -1117.0 | -873.5 | |
| 0.00 | 2.01 | 0.00 | 1.09 | -16.04 | 113.35 | 9.53 | 202.94 | 0.4098 | -929.0 | -764.5 | |
| 0.00 | 2.89 | 0.00 | 1.57 | -16.62 | 113.32 | 9.49 | 202.31 | 0.4181 | -728.0 | -723.8 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -16.07 | 113.17 | 9.34 | 202.51 | 0.4090 | -869.0 | -655.7 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -16.55 | 113.03 | 9.20 | 201.76 | 0.4153 | -909.0 | -764.5 | |
| 3.94 | 17.42 | 2.09 | 9.25 | -13.02 | 112.69 | 8.87 | 204.69 | 0.3611 | 944.3 | 641.3 | |
| 0.00 | 1.66 | 0.00 | 0.90 | -15.39 | 112.73 | 8.90 | 202.21 | 0.3963 | -637.0 | -546.5 | |
| 1.84 | 11.64 | 0.99 | 6.25 | -14.90 | 112.39 | 8.56 | 201.93 | 0.3870 | -990.2 | -856.7 | |
| 1.05 | -51.00 | 0.56 | -51.00 | -14.70 | 112.35 | 8.53 | 202.03 | 0.3839 | -994.3 | 999999 | |
| 6.04 | -49.00 | 3.20 | -49.00 | -13.11 | 112.20 | 8.37 | 203.37 | 0.3591 | 989.3 | 999999 | |
| 0.00 | 11.99 | 0.00 | 6.45 | -15.34 | 111.81 | 7.99 | 200.17 | 0.3903 | -1006.0 | -780.9 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -14.89 | 111.70 | 7.88 | 200.33 | 0.3828 | 783.0 | 672.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
