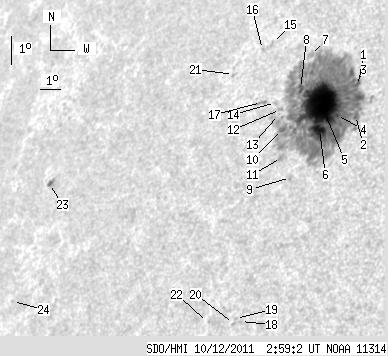

SDO HMI 2011-10-12 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.26 | 665.68 | 79.67 | 493.88 | 26.94 | 58.26 | -45.56 | 58.88 | 0.7457 | -936.4 | -299.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.14 | 631.87 | 0.83 | 467.42 | 27.90 | 59.77 | -44.05 | 57.10 | 0.7342 | 213.8 | -313.4 | |
| 2.45 | -1.00 | 1.76 | -1.00 | 26.85 | 60.16 | -43.67 | 58.31 | 0.7263 | -718.2 | 999999 | |
| 1.93 | -1.00 | 1.40 | -1.00 | 27.80 | 59.69 | -44.14 | 57.27 | 0.7347 | -277.2 | 999999 | |
| 1.49 | -1.00 | 1.08 | -1.00 | 26.79 | 59.30 | -44.53 | 58.72 | 0.7348 | -1646.1 | 999999 | |
| 83.09 | -1.00 | 61.42 | -1.00 | 27.09 | 58.43 | -45.39 | 58.65 | 0.7445 | -1224.8 | 999999 | |
| 8.23 | -1.00 | 6.03 | -1.00 | 26.29 | 58.74 | -45.09 | 59.56 | 0.7387 | -1238.1 | 999999 | |
| 0.00 | 4.38 | 0.00 | 3.34 | 28.59 | 57.06 | -46.76 | 57.23 | 0.7631 | 179.0 | 156.2 | |
| 3.33 | -1.00 | 2.52 | -1.00 | 27.52 | 57.18 | -46.65 | 58.54 | 0.7583 | -350.8 | 999999 | |
| 0.00 | 1.58 | 0.00 | 1.16 | 24.70 | 58.14 | -45.69 | 61.84 | 0.7397 | 510.0 | 459.2 | |
| 3.41 | -1.00 | 2.57 | -1.00 | 26.17 | 57.02 | -46.81 | 60.31 | 0.7555 | 134.2 | 999999 | |
| 0.00 | 5.69 | 0.00 | 4.23 | 25.29 | 57.42 | -46.41 | 61.31 | 0.7488 | 66.0 | -39.0 | |
| 0.00 | 2.54 | 0.00 | 1.93 | 26.79 | 56.59 | -47.24 | 59.66 | 0.7617 | -340.0 | -196.0 | |
| 0.00 | 0.70 | 0.00 | 0.53 | 26.62 | 56.58 | -47.25 | 59.87 | 0.7612 | -340.0 | -268.0 | |
| 0.00 | 2.28 | 0.00 | 1.75 | 26.99 | 56.23 | -47.60 | 59.53 | 0.7658 | 273.0 | 265.1 | |
| 0.00 | 1.93 | 0.00 | 1.53 | 28.83 | 54.98 | -48.85 | 57.63 | 0.7833 | -527.0 | -402.5 | |
| 0.00 | 0.96 | 0.00 | 0.77 | 28.61 | 54.60 | -49.23 | 58.03 | 0.7860 | -453.0 | -396.0 | |
| 0.00 | 3.24 | 0.00 | 2.51 | 26.94 | 55.55 | -48.27 | 59.80 | 0.7721 | -447.0 | -384.9 | |
| 0.00 | 0.96 | 0.00 | 0.70 | 20.12 | 57.76 | -46.07 | 68.04 | 0.7314 | -705.0 | -568.5 | |
| 0.00 | 1.40 | 0.00 | 1.02 | 20.20 | 57.50 | -46.33 | 68.00 | 0.7344 | -516.0 | -442.4 | |
| 0.00 | 1.23 | 0.00 | 0.89 | 20.04 | 57.47 | -46.36 | 68.22 | 0.7344 | -570.0 | -423.7 | |
| 0.00 | 1.84 | 0.00 | 1.48 | 27.71 | 53.64 | -50.19 | 59.42 | 0.7922 | -373.0 | -356.3 | |
| 0.00 | 0.61 | 0.00 | 0.45 | 19.98 | 56.27 | -47.55 | 68.57 | 0.7473 | -448.0 | -443.3 | |
| 2.19 | 3.33 | 2.06 | 3.12 | 23.53 | 45.94 | -57.89 | 66.04 | 0.8519 | 538.9 | 563.9 | |
| 0.00 | 1.14 | 0.00 | 1.05 | 19.80 | 46.06 | -57.77 | 70.41 | 0.8470 | 413.0 | 344.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
