SDO HMI 2011-10-12 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.37 | 278.06 | 62.07 | 252.76 | -12.39 | 49.64 | -54.19 | 109.12 | 0.8398 | 38.3 | 107.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

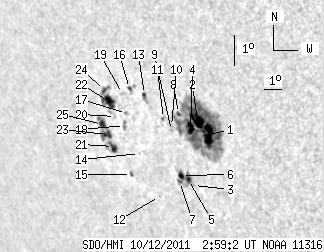

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.82 | 186.75 | 10.28 | 163.79 | -12.43 | 51.42 | -52.41 | 109.73 | 0.8243 | 962.3 | 235.2 | |
| 12.08 | -1.00 | 10.60 | -1.00 | -12.03 | 50.97 | -52.86 | 109.11 | 0.8273 | 805.0 | 999999 | |
| 0.00 | 1.49 | 0.00 | 1.35 | -14.15 | 50.10 | -53.73 | 111.26 | 0.8410 | -296.0 | -198.9 | |
| 5.52 | -1.00 | 4.90 | -1.00 | -12.32 | 50.53 | -53.30 | 109.30 | 0.8321 | 385.0 | 999999 | |
| 2.10 | 16.11 | 1.92 | 14.81 | -13.98 | 49.89 | -53.93 | 111.00 | 0.8423 | 610.0 | 299.8 | |
| 2.54 | -5.00 | 2.34 | -5.00 | -13.88 | 49.56 | -54.27 | 110.78 | 0.8450 | 432.8 | 999999 | |
| 0.70 | -5.00 | 0.65 | -5.00 | -14.09 | 49.38 | -54.45 | 110.95 | 0.8471 | 437.8 | 999999 | |
| 1.75 | -1.00 | 1.57 | -1.00 | -11.89 | 50.03 | -53.80 | 108.65 | 0.8355 | 209.1 | 999999 | |
| 0.00 | 1.31 | 0.00 | 1.20 | -12.47 | 49.49 | -54.34 | 109.15 | 0.8419 | -410.0 | -360.9 | |
| 0.00 | 1.40 | 0.00 | 1.28 | -12.35 | 49.53 | -54.30 | 109.01 | 0.8412 | -473.0 | -415.1 | |
| 0.00 | 1.75 | 0.00 | 1.61 | -12.13 | 49.17 | -54.66 | 108.65 | 0.8438 | -544.0 | -492.5 | |
| 0.00 | 0.96 | 0.00 | 0.93 | -14.68 | 48.07 | -55.76 | 111.19 | 0.8597 | -373.0 | -316.7 | |
| 1.05 | 4.55 | 0.98 | 4.25 | -11.45 | 48.35 | -55.47 | 107.63 | 0.8493 | -437.0 | -464.5 | |
| 0.00 | 0.61 | 0.00 | 0.59 | -13.38 | 47.44 | -56.38 | 109.54 | 0.8617 | 204.0 | 135.0 | |
| 1.40 | 2.19 | 1.40 | 2.18 | -14.11 | 46.72 | -57.11 | 110.13 | 0.8694 | -369.8 | -467.7 | |
| 1.23 | 4.29 | 1.17 | 4.07 | -11.34 | 47.57 | -56.26 | 107.27 | 0.8559 | 398.3 | 44.1 | |
| 0.00 | 1.66 | 0.00 | 1.61 | -12.16 | 47.14 | -56.69 | 108.07 | 0.8614 | -746.0 | -634.8 | |
| 0.00 | 3.59 | 0.00 | 3.51 | -12.55 | 46.89 | -56.94 | 108.45 | 0.8644 | -740.0 | -657.8 | |
| 0.00 | 1.75 | 0.00 | 1.69 | -11.53 | 47.12 | -56.71 | 107.36 | 0.8602 | -303.0 | -301.5 | |
| 0.00 | 0.88 | 0.00 | 0.87 | -12.31 | 46.46 | -57.36 | 108.05 | 0.8674 | -439.0 | -394.6 | |
| 5.25 | 10.24 | 5.31 | 10.38 | -13.30 | 45.99 | -57.84 | 109.01 | 0.8734 | -603.2 | -61.2 | |
| 11.47 | 21.54 | 11.38 | 21.38 | -11.87 | 46.21 | -57.61 | 107.48 | 0.8685 | -636.4 | -413.9 | |
| 5.52 | 16.99 | 5.59 | 17.26 | -12.94 | 45.78 | -58.05 | 108.56 | 0.8743 | -569.3 | -275.4 | |
| 1.23 | -22.00 | 1.22 | -22.00 | -11.53 | 46.09 | -57.74 | 107.08 | 0.8687 | -521.5 | 999999 | |
| 2.71 | -23.00 | 2.76 | -23.00 | -12.64 | 45.59 | -58.24 | 108.17 | 0.8751 | -538.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
