SDO HMI 2011-10-12 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.90 | 16.64 | 2.53 | 8.60 | 20.78 | 95.89 | -7.94 | 26.75 | 0.2865 | -344.3 | 143.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

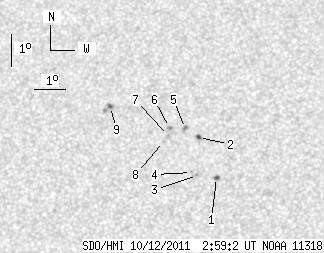

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.19 | 2.28 | 1.12 | 1.17 | 19.53 | 97.42 | -6.41 | 24.33 | 0.2564 | -768.7 | -546.0 | |
| 1.40 | 2.36 | 0.72 | 1.22 | 20.76 | 96.79 | -7.04 | 24.32 | 0.2794 | 836.2 | 737.7 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 19.58 | 96.81 | -7.02 | 26.22 | 0.2616 | -808.0 | -751.4 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 19.67 | 96.62 | -7.21 | 26.68 | 0.2644 | -926.0 | -643.1 | |
| 0.00 | 3.06 | 0.00 | 1.58 | 21.03 | 96.36 | -7.47 | 25.17 | 0.2866 | 955.0 | 759.6 | |
| 0.00 | 1.93 | 0.00 | 1.00 | 21.05 | 95.84 | -7.99 | 26.63 | 0.2907 | -954.0 | -783.6 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 20.80 | 95.82 | -8.01 | 27.09 | 0.2872 | -879.0 | -639.9 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 20.62 | 95.67 | -8.16 | 27.85 | 0.2856 | -762.0 | -461.6 | |
| 1.31 | 3.85 | 0.69 | 2.01 | 21.67 | 93.88 | -9.95 | 30.76 | 0.3152 | 1009.0 | 841.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
