SDO HMI 2011-10-12 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.68 | 583.46 | 52.33 | 315.94 | 23.13 | 120.51 | 17.23 | 317.49 | 0.4048 | -1457.9 | -438.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

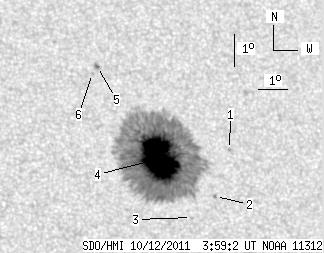

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.53 | 23.33 | 122.94 | 19.66 | 314.32 | 0.4337 | 844.0 | 708.2 | |
| 0.00 | 1.49 | 0.00 | 0.81 | 21.88 | 122.25 | 18.97 | 312.58 | 0.4114 | 796.0 | 572.5 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 21.26 | 121.35 | 18.07 | 312.64 | 0.3947 | 621.0 | 395.8 | |
| 96.24 | 576.54 | 52.09 | 312.17 | 23.12 | 120.51 | 17.23 | 317.47 | 0.4047 | -1611.3 | -444.3 | |
| 0.44 | 2.19 | 0.24 | 1.20 | 26.08 | 118.78 | 15.50 | 325.18 | 0.4221 | -916.6 | -758.2 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 25.86 | 118.58 | 15.30 | 325.18 | 0.4176 | -772.0 | -571.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
