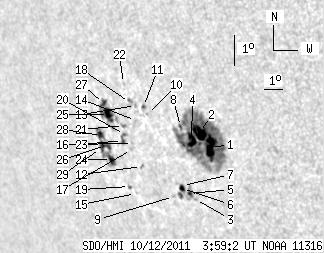

SDO HMI 2011-10-12 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.25 | 274.95 | 66.30 | 247.64 | -12.40 | 49.48 | -53.80 | 109.25 | 0.8364 | 102.5 | 95.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.50 | 177.41 | 13.30 | 153.44 | -12.44 | 51.46 | -51.82 | 109.94 | 0.8188 | 927.2 | 234.1 | |
| 13.14 | -1.00 | 11.35 | -1.00 | -12.01 | 51.03 | -52.25 | 109.29 | 0.8216 | 857.3 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.94 | -14.19 | 50.15 | -53.13 | 111.51 | 0.8358 | -205.0 | -138.3 | |
| 7.62 | -1.00 | 6.67 | -1.00 | -12.33 | 50.53 | -52.75 | 109.50 | 0.8271 | 369.5 | 999999 | |
| 1.40 | 7.88 | 1.26 | 7.10 | -14.03 | 49.90 | -53.38 | 111.23 | 0.8376 | 579.8 | 359.9 | |
| 2.71 | 7.09 | 2.46 | 6.46 | -13.90 | 49.58 | -53.70 | 110.98 | 0.8400 | 379.8 | 360.5 | |
| 0.53 | -6.00 | 0.48 | -6.00 | -13.80 | 49.61 | -53.67 | 110.88 | 0.8395 | -81.0 | 999999 | |
| 1.23 | -1.00 | 1.08 | -1.00 | -11.90 | 50.09 | -53.19 | 108.85 | 0.8299 | 286.4 | 999999 | |
| 0.00 | 1.14 | 0.00 | 1.05 | -14.20 | 48.99 | -54.28 | 111.13 | 0.8459 | -334.0 | -276.7 | |
| 0.00 | 0.44 | 0.00 | 0.40 | -11.68 | 48.43 | -54.85 | 108.07 | 0.8444 | -272.0 | -333.8 | |
| 1.23 | 1.93 | 1.13 | 1.78 | -11.44 | 48.29 | -54.99 | 107.76 | 0.8451 | -497.1 | -478.0 | |
| 0.00 | 1.31 | 0.00 | 1.25 | -13.38 | 47.55 | -55.73 | 109.74 | 0.8562 | 457.0 | 317.5 | |
| 0.00 | 1.66 | 0.00 | 1.55 | -11.45 | 47.85 | -55.43 | 107.64 | 0.8489 | 354.0 | 295.7 | |
| 0.00 | 1.66 | 0.00 | 1.56 | -11.93 | 47.71 | -55.57 | 108.14 | 0.8513 | -289.0 | -293.5 | |
| 0.00 | 0.26 | 0.00 | 0.26 | -14.30 | 46.88 | -56.40 | 110.55 | 0.8640 | -276.0 | -379.3 | |
| 0.00 | 0.88 | 0.00 | 0.84 | -12.69 | 47.30 | -55.98 | 108.87 | 0.8566 | -274.0 | -248.8 | |
| 0.00 | 1.84 | 0.00 | 1.76 | -12.89 | 47.17 | -56.11 | 109.06 | 0.8582 | -234.0 | -236.2 | |
| 0.00 | 3.85 | 0.00 | 3.61 | -11.38 | 47.55 | -55.73 | 107.47 | 0.8514 | 7.0 | 54.5 | |
| 1.31 | 1.66 | 1.29 | 1.64 | -14.10 | 46.62 | -56.66 | 110.25 | 0.8657 | -424.9 | -451.0 | |
| 0.35 | 4.55 | 0.34 | 4.40 | -12.44 | 46.94 | -56.34 | 108.49 | 0.8591 | -742.0 | -598.5 | |
| 0.00 | 2.19 | 0.00 | 2.10 | -12.15 | 46.97 | -56.30 | 108.18 | 0.8581 | -758.0 | -642.6 | |
| 0.00 | 0.88 | 0.00 | 0.82 | -10.81 | 47.39 | -55.89 | 106.77 | 0.8515 | 223.0 | 172.2 | |
| 1.40 | -20.00 | 1.35 | -20.00 | -12.64 | 46.76 | -56.52 | 108.66 | 0.8611 | -664.4 | 999999 | |
| 4.73 | 30.47 | 4.71 | 30.49 | -13.32 | 45.89 | -57.39 | 109.16 | 0.8698 | -543.0 | -236.2 | |
| 7.71 | 26.80 | 7.52 | 26.19 | -11.88 | 46.22 | -57.06 | 107.65 | 0.8638 | -750.9 | -433.8 | |
| 5.78 | -24.00 | 5.77 | -24.00 | -12.90 | 45.70 | -57.58 | 108.64 | 0.8704 | -481.7 | 999999 | |
| 2.71 | -25.00 | 2.66 | -25.00 | -11.55 | 46.04 | -57.23 | 107.23 | 0.8646 | -525.0 | 999999 | |
| 3.06 | -24.00 | 3.07 | -24.00 | -12.59 | 45.58 | -57.70 | 108.27 | 0.8707 | -485.1 | 999999 | |
| 1.84 | -24.00 | 1.86 | -24.00 | -13.02 | 45.36 | -57.92 | 108.68 | 0.8734 | 174.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
