SDO HMI 2011-10-12 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.57 | 52.10 | 21.19 | 43.15 | 9.60 | 49.53 | -53.75 | 82.56 | 0.8038 | -309.6 | -236.3 | |
|
previous
or next observation for the same group /

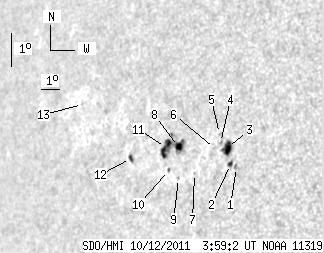

back to the solar disc SDO HMI 2011-10-12 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 1.99 | 9.30 | 52.04 | -51.24 | 82.96 | 0.7776 | -355.0 | -416.1 | |
| 2.10 | 3.33 | 1.66 | 2.63 | 9.37 | 51.73 | -51.55 | 82.88 | 0.7809 | -576.1 | -444.1 | |
| 8.41 | 10.51 | 6.67 | 8.34 | 9.86 | 51.48 | -51.80 | 82.24 | 0.7837 | -701.1 | -475.5 | |
| 0.00 | 1.49 | 0.00 | 1.19 | 9.98 | 51.10 | -52.17 | 82.09 | 0.7877 | -538.0 | -398.1 | |
| 0.00 | 0.96 | 0.00 | 0.77 | 10.25 | 50.99 | -52.28 | 81.76 | 0.7888 | -475.0 | -397.4 | |
| 0.00 | 0.96 | 0.00 | 0.78 | 9.78 | 50.85 | -52.43 | 82.35 | 0.7904 | -171.0 | -251.0 | |
| 0.00 | 0.88 | 0.00 | 0.72 | 8.95 | 50.02 | -53.26 | 83.38 | 0.7991 | -424.0 | -357.7 | |
| 3.68 | 26.45 | 3.08 | 22.36 | 9.69 | 49.03 | -54.25 | 82.45 | 0.8092 | 591.7 | -146.6 | |
| 0.00 | 0.61 | 0.00 | 0.51 | 8.74 | 49.24 | -54.03 | 83.63 | 0.8072 | -447.0 | -387.9 | |
| 0.96 | 1.31 | 0.81 | 1.11 | 8.93 | 48.68 | -54.60 | 83.38 | 0.8129 | -195.7 | -207.5 | |
| 7.88 | -8.00 | 6.71 | -8.00 | 9.60 | 48.37 | -54.91 | 82.55 | 0.8159 | -584.5 | 999999 | |
| 2.54 | 2.80 | 2.26 | 2.49 | 9.11 | 46.58 | -56.70 | 83.11 | 0.8334 | 465.7 | 302.2 | |
| 0.00 | 0.26 | 0.00 | 0.26 | 10.46 | 43.41 | -59.87 | 81.44 | 0.8621 | 521.0 | 514.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
