SDO HMI 2011-10-12 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.36 | 51.91 | 3.77 | 26.87 | 21.32 | 109.75 | 7.02 | 336.69 | 0.2882 | 479.7 | 501.3 | |
|
previous
or next observation for the same group /

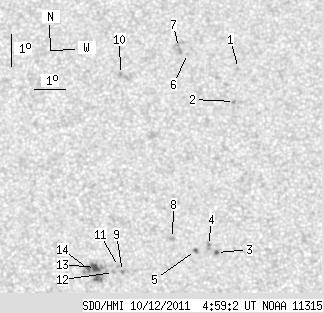

back to the solar disc SDO HMI 2011-10-12 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.56 | 25.74 | 113.38 | 10.64 | 333.77 | 0.3781 | 822.0 | 720.6 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 24.70 | 113.15 | 10.42 | 332.86 | 0.3617 | 861.0 | 737.5 | |
| 1.14 | 1.84 | 0.59 | 0.95 | 20.00 | 112.22 | 9.49 | 327.33 | 0.2882 | -898.7 | -922.4 | |
| 0.00 | 3.41 | 0.00 | 1.77 | 20.22 | 111.97 | 9.24 | 328.43 | 0.2891 | -872.0 | -761.9 | |
| 0.35 | 1.93 | 0.18 | 0.99 | 20.07 | 111.54 | 8.81 | 329.32 | 0.2833 | -1051.8 | -898.3 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 26.25 | 111.69 | 8.96 | 337.98 | 0.3743 | 849.0 | 693.7 | |
| 0.00 | 7.71 | 0.00 | 4.12 | 26.44 | 111.41 | 8.67 | 338.83 | 0.3755 | 788.0 | 680.9 | |
| 0.00 | 2.10 | 0.00 | 1.08 | 20.46 | 110.82 | 8.09 | 332.08 | 0.2829 | -907.0 | -661.6 | |
| 0.00 | 1.66 | 0.00 | 0.85 | 19.46 | 109.17 | 6.44 | 335.45 | 0.2558 | 934.0 | 723.9 | |
| 0.00 | 1.66 | 0.00 | 0.88 | 25.61 | 109.40 | 6.67 | 342.61 | 0.3521 | 986.0 | 771.3 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 19.61 | 109.05 | 6.32 | 336.12 | 0.2573 | 861.0 | 659.2 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 19.43 | 108.88 | 6.15 | 336.37 | 0.2534 | 828.0 | 694.8 | |
| 5.08 | 25.48 | 2.60 | 13.03 | 19.59 | 108.32 | 5.58 | 338.58 | 0.2522 | 1049.9 | 834.5 | |
| 0.79 | -13.00 | 0.40 | -13.00 | 19.53 | 108.09 | 5.36 | 339.27 | 0.2499 | 1040.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
