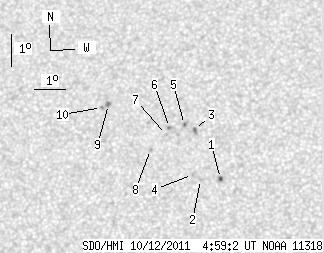

SDO HMI 2011-10-12 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.41 | 17.17 | 1.75 | 8.83 | 20.64 | 95.97 | -6.76 | 23.46 | 0.2763 | -160.7 | 26.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.66 | 2.28 | 0.85 | 1.16 | 19.44 | 97.60 | -5.13 | 20.03 | 0.2471 | -853.9 | -781.0 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 19.40 | 96.97 | -5.76 | 22.33 | 0.2504 | -912.0 | -569.7 | |
| 1.40 | 2.80 | 0.72 | 1.44 | 20.95 | 96.72 | -6.01 | 20.87 | 0.2759 | 919.4 | 799.6 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 19.56 | 96.71 | -6.02 | 22.98 | 0.2544 | -931.0 | -684.4 | |
| 0.35 | 1.84 | 0.18 | 0.95 | 21.10 | 96.39 | -6.34 | 21.68 | 0.2803 | 791.5 | 588.6 | |
| 0.00 | 1.93 | 0.00 | 0.99 | 21.00 | 95.91 | -6.82 | 23.28 | 0.2818 | -959.0 | -680.0 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 20.78 | 95.82 | -6.91 | 23.88 | 0.2791 | -828.0 | -515.9 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 20.31 | 95.33 | -7.40 | 26.14 | 0.2755 | -942.0 | -698.2 | |
| 0.00 | 1.84 | 0.00 | 0.96 | 21.68 | 93.89 | -8.84 | 27.89 | 0.3066 | 1210.0 | 1040.2 | |
| 0.00 | 1.58 | 0.00 | 0.82 | 21.59 | 93.67 | -9.06 | 28.63 | 0.3069 | 925.0 | 792.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
