SDO HMI 2011-10-12 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.04 | 571.63 | 57.73 | 311.23 | 23.12 | 120.47 | 18.29 | 315.89 | 0.4163 | -1558.6 | -435.1 | |
|
previous
or next observation for the same group /

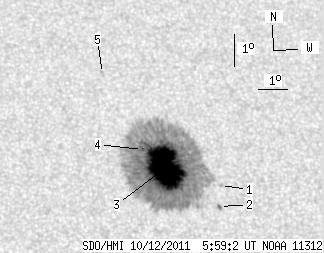

back to the solar disc SDO HMI 2011-10-12 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.82 | 22.48 | 122.27 | 20.09 | 312.23 | 0.4304 | -690.0 | -471.1 | |
| 1.40 | 1.84 | 0.77 | 1.00 | 21.83 | 122.14 | 19.96 | 311.17 | 0.4227 | 645.9 | 508.4 | |
| 103.50 | 566.02 | 56.34 | 308.16 | 23.11 | 120.47 | 18.29 | 315.86 | 0.4162 | -1624.0 | -435.1 | |
| 1.14 | -3.00 | 0.62 | -3.00 | 23.69 | 119.76 | 17.58 | 317.97 | 0.4149 | -1020.9 | 999999 | |
| 0.00 | 2.28 | 0.00 | 1.25 | 26.13 | 118.73 | 16.55 | 323.58 | 0.4325 | -773.0 | -588.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
