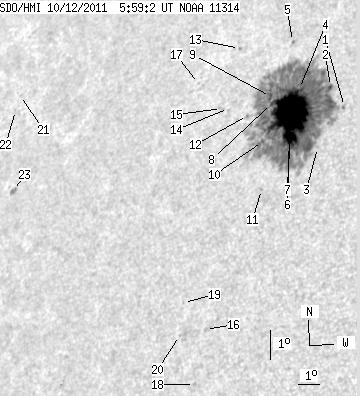

SDO HMI 2011-10-12 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.62 | 645.64 | 82.64 | 466.44 | 26.98 | 58.20 | -43.98 | 58.24 | 0.7301 | -944.3 | -298.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 1.10 | 27.44 | 60.66 | -41.52 | 56.62 | 0.7069 | 453.0 | 361.3 | |
| 1.31 | 626.44 | 0.93 | 451.55 | 28.03 | 59.74 | -42.44 | 56.24 | 0.7188 | 237.2 | -310.4 | |
| 0.00 | 1.14 | 0.00 | 0.80 | 26.07 | 60.06 | -42.12 | 58.71 | 0.7073 | 3.0 | 11.2 | |
| 0.44 | -2.00 | 0.32 | -2.00 | 27.87 | 58.38 | -43.81 | 57.02 | 0.7318 | -731.8 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.85 | 29.34 | 57.25 | -44.93 | 55.59 | 0.7485 | 596.0 | 555.4 | |
| 96.23 | -2.00 | 69.40 | -2.00 | 27.09 | 58.35 | -43.83 | 58.05 | 0.7290 | -1158.5 | 999999 | |
| 11.12 | -2.00 | 7.94 | -2.00 | 26.30 | 58.68 | -43.50 | 58.95 | 0.7226 | -1261.3 | 999999 | |
| 1.31 | -2.00 | 0.96 | -2.00 | 27.31 | 57.34 | -44.84 | 58.15 | 0.7400 | -278.7 | 999999 | |
| 3.33 | -2.00 | 2.45 | -2.00 | 27.53 | 57.18 | -45.00 | 57.93 | 0.7424 | -364.1 | 999999 | |
| 0.88 | -2.00 | 0.64 | -2.00 | 26.09 | 57.53 | -44.66 | 59.67 | 0.7337 | -532.6 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.75 | 24.59 | 58.18 | -44.01 | 61.41 | 0.7218 | 493.0 | 408.2 | |
| 0.00 | 1.05 | 0.00 | 0.78 | 26.85 | 56.43 | -45.76 | 59.07 | 0.7474 | -436.0 | -336.3 | |
| 0.00 | 1.23 | 0.00 | 0.95 | 28.94 | 54.86 | -47.32 | 56.98 | 0.7696 | -652.0 | -527.7 | |
| 0.00 | 0.35 | 0.00 | 0.26 | 27.01 | 55.42 | -46.77 | 59.22 | 0.7579 | -491.0 | -507.5 | |
| 0.00 | 2.36 | 0.00 | 1.80 | 26.98 | 55.08 | -47.10 | 59.36 | 0.7610 | -577.0 | -476.5 | |
| 0.00 | 1.23 | 0.00 | 0.87 | 20.11 | 57.44 | -44.74 | 67.70 | 0.7168 | -583.0 | -505.4 | |
| 0.00 | 0.61 | 0.00 | 0.48 | 27.68 | 53.52 | -48.66 | 58.98 | 0.7781 | -340.0 | -304.4 | |
| 0.00 | 1.23 | 0.00 | 0.86 | 18.41 | 57.54 | -44.64 | 70.03 | 0.7117 | -616.0 | -501.7 | |
| 0.00 | 0.79 | 0.00 | 0.57 | 20.86 | 56.15 | -46.03 | 67.02 | 0.7329 | -399.0 | -336.1 | |
| 0.00 | 0.88 | 0.00 | 0.63 | 19.85 | 56.36 | -45.83 | 68.34 | 0.7282 | -429.0 | -348.7 | |
| 0.00 | 0.79 | 0.00 | 0.75 | 26.53 | 44.23 | -57.95 | 62.56 | 0.8566 | 350.0 | 291.3 | |
| 0.00 | 0.79 | 0.00 | 0.75 | 26.05 | 44.30 | -57.89 | 63.11 | 0.8553 | 430.0 | 411.0 | |
| 0.00 | 2.98 | 0.00 | 2.69 | 23.60 | 45.93 | -56.25 | 65.70 | 0.8381 | 768.0 | 571.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
