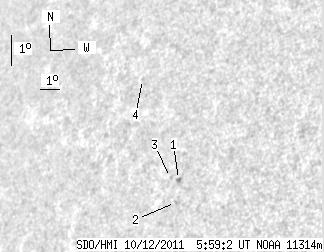

SDO HMI 2011-10-12 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.16 | 0.00 | 4.13 | 18.45 | 50.64 | -51.54 | 71.28 | 0.7864 | -319.0 | -263.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.84 | 0.00 | 1.45 | 18.00 | 51.38 | -50.80 | 71.72 | 0.7785 | -567.0 | -440.3 | |
| 0.00 | 1.31 | 0.00 | 1.03 | 17.30 | 51.50 | -50.68 | 72.60 | 0.7763 | -661.0 | -514.7 | |
| 0.00 | 0.96 | 0.00 | 0.76 | 18.03 | 50.97 | -51.22 | 71.75 | 0.7828 | -462.0 | -299.4 | |
| 0.00 | 1.05 | 0.00 | 0.89 | 20.86 | 48.18 | -54.01 | 68.63 | 0.8141 | 414.0 | 342.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
