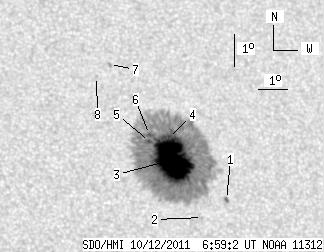

SDO HMI 2011-10-12 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.57 | 560.14 | 58.19 | 305.95 | 23.15 | 120.45 | 18.82 | 315.19 | 0.4226 | -1484.1 | -429.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.93 | 2.28 | 1.06 | 1.25 | 21.81 | 122.10 | 20.47 | 310.48 | 0.4286 | 649.0 | 405.0 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 21.28 | 121.21 | 19.57 | 310.62 | 0.4129 | 733.0 | 502.1 | |
| 100.52 | 554.27 | 54.88 | 302.73 | 23.12 | 120.47 | 18.84 | 315.10 | 0.4225 | -1617.1 | -431.4 | |
| 1.23 | -3.00 | 0.67 | -3.00 | 23.81 | 120.40 | 18.77 | 316.44 | 0.4289 | -1098.4 | 999999 | |
| 1.31 | -3.00 | 0.72 | -3.00 | 23.71 | 119.73 | 18.10 | 317.22 | 0.4206 | -980.7 | 999999 | |
| 1.58 | -3.00 | 0.86 | -3.00 | 23.92 | 119.77 | 18.13 | 317.56 | 0.4233 | -717.6 | 999999 | |
| 0.00 | 1.75 | 0.00 | 0.96 | 26.18 | 118.71 | 17.08 | 322.83 | 0.4381 | -712.0 | -568.2 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 25.81 | 118.21 | 16.57 | 323.05 | 0.4289 | -716.0 | -570.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
