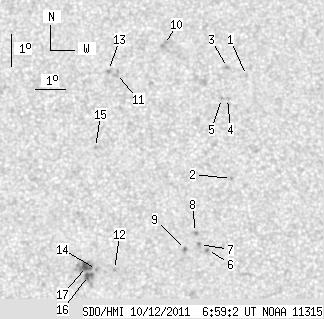

SDO HMI 2011-10-12 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.58 | 47.56 | 4.39 | 24.74 | 21.61 | 110.00 | 8.36 | 333.33 | 0.3023 | 504.5 | 450.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.80 | 25.44 | 114.01 | 12.38 | 329.87 | 0.3873 | 762.0 | 500.8 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 22.21 | 113.21 | 11.57 | 326.42 | 0.3372 | 959.0 | 701.4 | |
| 0.00 | 2.01 | 0.00 | 1.08 | 25.70 | 113.39 | 11.76 | 331.46 | 0.3860 | 862.0 | 632.1 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 24.72 | 113.30 | 11.66 | 330.27 | 0.3718 | 719.0 | 649.0 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 24.73 | 113.10 | 11.46 | 330.69 | 0.3703 | 824.0 | 719.5 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 20.03 | 112.26 | 10.62 | 324.48 | 0.2994 | -1059.0 | -945.3 | |
| 0.00 | 1.93 | 0.00 | 1.00 | 20.19 | 112.01 | 10.37 | 325.43 | 0.2991 | -952.0 | -806.6 | |
| 0.00 | 1.75 | 0.00 | 0.91 | 20.56 | 111.90 | 10.27 | 326.43 | 0.3032 | -801.0 | -649.8 | |
| 0.00 | 1.93 | 0.00 | 1.00 | 20.04 | 111.55 | 9.91 | 326.32 | 0.2928 | -1079.0 | -842.4 | |
| 0.00 | 3.41 | 0.00 | 1.83 | 26.48 | 111.33 | 9.69 | 336.68 | 0.3824 | 678.0 | 649.2 | |
| 0.00 | 3.33 | 0.00 | 1.76 | 25.58 | 109.64 | 8.01 | 339.41 | 0.3589 | 678.0 | 666.7 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 19.46 | 109.23 | 7.59 | 331.78 | 0.2646 | 836.0 | 688.7 | |
| 0.00 | 1.58 | 0.00 | 0.84 | 25.68 | 109.38 | 7.75 | 340.13 | 0.3589 | 895.0 | 797.6 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 19.47 | 108.65 | 7.02 | 333.61 | 0.2603 | 851.0 | 709.4 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 23.26 | 108.81 | 7.17 | 338.81 | 0.3187 | 903.0 | 759.3 | |
| 3.68 | 21.89 | 1.88 | 11.22 | 19.29 | 108.39 | 6.75 | 334.14 | 0.2556 | 1063.1 | 755.7 | |
| 4.90 | -16.00 | 2.51 | -16.00 | 19.57 | 108.34 | 6.70 | 334.80 | 0.2595 | 1078.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
