SDO HMI 2011-10-12 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.77 | 556.97 | 55.35 | 306.12 | 23.12 | 120.41 | 19.87 | 313.70 | 0.4343 | -1467.7 | -423.8 | |
|
previous
or next observation for the same group /

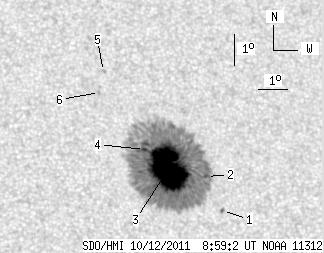

back to the solar disc SDO HMI 2011-10-12 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 1.75 | 0.24 | 0.97 | 21.72 | 122.06 | 21.52 | 309.06 | 0.4407 | 700.4 | 538.9 | |
| 2.01 | 551.46 | 1.11 | 303.07 | 22.80 | 121.68 | 21.14 | 311.51 | 0.4458 | -393.2 | -425.5 | |
| 96.48 | -2.00 | 52.99 | -2.00 | 23.10 | 120.41 | 19.87 | 313.67 | 0.4340 | -1583.4 | 999999 | |
| 1.84 | -2.00 | 1.01 | -2.00 | 23.72 | 119.67 | 19.13 | 315.78 | 0.4321 | -927.5 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.16 | 26.23 | 118.64 | 18.10 | 321.40 | 0.4486 | -507.0 | -501.4 | |
| 0.00 | 1.66 | 0.00 | 0.92 | 25.56 | 118.40 | 17.85 | 320.72 | 0.4387 | -726.0 | -636.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
