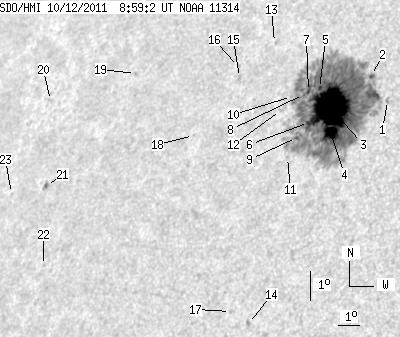

SDO HMI 2011-10-12 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.48 | 692.51 | 77.93 | 488.77 | 26.95 | 58.11 | -42.43 | 57.62 | 0.7143 | -836.7 | -279.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.63 | 0.00 | 1.79 | 27.47 | 60.71 | -39.84 | 55.78 | 0.6897 | 549.0 | 383.8 | |
| 1.31 | 670.61 | 0.91 | 471.82 | 28.22 | 59.66 | -40.89 | 55.28 | 0.7040 | 349.7 | -289.4 | |
| 90.87 | -2.00 | 63.93 | -2.00 | 27.08 | 58.33 | -42.21 | 57.38 | 0.7126 | -1031.9 | 999999 | |
| 11.29 | -2.00 | 7.87 | -2.00 | 26.30 | 58.69 | -41.86 | 58.28 | 0.7056 | -1222.2 | 999999 | |
| 1.40 | -2.00 | 1.00 | -2.00 | 27.65 | 57.55 | -42.99 | 56.96 | 0.7228 | -299.4 | 999999 | |
| 1.31 | -2.00 | 0.93 | -2.00 | 26.55 | 57.57 | -42.97 | 58.40 | 0.7182 | -526.3 | 999999 | |
| 1.23 | -2.00 | 0.88 | -2.00 | 27.52 | 57.10 | -43.44 | 57.31 | 0.7268 | -424.3 | 999999 | |
| 0.35 | -2.00 | 0.25 | -2.00 | 27.41 | 56.93 | -43.62 | 57.53 | 0.7282 | -208.5 | 999999 | |
| 1.23 | -2.00 | 0.87 | -2.00 | 26.04 | 57.26 | -43.28 | 59.20 | 0.7195 | -576.3 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.76 | 27.31 | 56.41 | -44.13 | 57.86 | 0.7330 | 226.0 | 219.6 | |
| 0.00 | 1.23 | 0.00 | 0.87 | 25.39 | 57.14 | -43.40 | 60.11 | 0.7183 | -397.0 | -314.3 | |
| 0.00 | 1.40 | 0.00 | 1.02 | 26.83 | 56.13 | -44.41 | 58.59 | 0.7340 | -490.0 | -331.1 | |
| 0.00 | 0.79 | 0.00 | 0.59 | 28.96 | 54.71 | -45.84 | 56.40 | 0.7558 | -628.0 | -557.8 | |
| 0.00 | 2.10 | 0.00 | 1.45 | 20.15 | 57.48 | -43.07 | 67.16 | 0.6979 | -664.0 | -561.2 | |
| 0.00 | 2.01 | 0.00 | 1.53 | 27.73 | 53.67 | -46.87 | 58.32 | 0.7614 | -561.0 | -537.0 | |
| 0.00 | 1.31 | 0.00 | 1.01 | 28.08 | 53.43 | -47.11 | 57.97 | 0.7649 | -333.0 | -250.6 | |
| 0.00 | 1.05 | 0.00 | 0.74 | 20.46 | 56.57 | -43.97 | 66.99 | 0.7090 | -486.0 | -419.9 | |
| 0.00 | 0.79 | 0.00 | 0.61 | 25.76 | 52.47 | -48.07 | 61.20 | 0.7669 | -432.0 | -357.0 | |
| 0.00 | 1.23 | 0.00 | 1.03 | 27.46 | 48.40 | -52.14 | 60.22 | 0.8093 | 361.0 | 309.3 | |
| 0.00 | 1.75 | 0.00 | 1.60 | 26.24 | 44.36 | -56.18 | 62.56 | 0.8417 | 505.0 | 402.0 | |
| 1.49 | 2.98 | 1.29 | 2.59 | 23.63 | 45.91 | -54.64 | 65.38 | 0.8240 | 632.1 | 571.6 | |
| 0.00 | 1.05 | 0.00 | 0.88 | 21.18 | 47.13 | -53.41 | 68.13 | 0.8089 | 447.0 | 361.1 | |
| 0.00 | 0.53 | 0.00 | 0.48 | 23.22 | 44.13 | -56.41 | 66.17 | 0.8390 | 529.0 | 492.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
