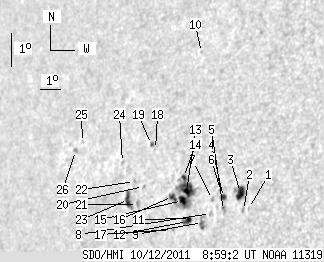

SDO HMI 2011-10-12 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.52 | 101.57 | 26.37 | 80.08 | 9.62 | 49.01 | -51.54 | 82.53 | 0.7805 | -67.6 | 42.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.58 | 9.46 | 52.26 | -48.29 | 82.74 | 0.7446 | -704.0 | -615.4 | |
| 0.00 | 1.84 | 0.00 | 1.37 | 9.38 | 52.04 | -48.50 | 82.84 | 0.7471 | -509.0 | -513.9 | |
| 7.70 | 10.86 | 5.75 | 8.10 | 9.90 | 51.80 | -48.74 | 82.14 | 0.7499 | -760.6 | -542.9 | |
| 2.63 | 3.24 | 1.99 | 2.45 | 9.69 | 51.05 | -49.49 | 82.43 | 0.7584 | -557.9 | -428.1 | |
| 0.00 | 2.63 | 0.00 | 1.98 | 9.31 | 51.13 | -49.42 | 82.94 | 0.7575 | -565.0 | -564.5 | |
| 0.00 | 1.23 | 0.00 | 0.93 | 9.92 | 50.86 | -49.68 | 82.13 | 0.7605 | -407.0 | -346.3 | |
| 0.00 | 1.58 | 0.00 | 1.20 | 9.59 | 50.55 | -49.99 | 82.57 | 0.7639 | -362.0 | -283.0 | |
| 0.00 | 1.75 | 0.00 | 1.34 | 9.17 | 50.54 | -50.00 | 83.12 | 0.7641 | -541.0 | -413.4 | |
| 0.00 | 5.95 | 0.00 | 4.58 | 8.87 | 50.22 | -50.33 | 83.51 | 0.7677 | -681.0 | -504.6 | |
| 0.00 | 0.96 | 0.00 | 0.76 | 13.92 | 48.90 | -51.64 | 77.02 | 0.7833 | 526.0 | 414.5 | |
| 0.35 | 5.95 | 0.27 | 4.65 | 8.94 | 49.63 | -50.92 | 83.41 | 0.7742 | 119.0 | -293.0 | |
| 3.76 | -11.00 | 2.94 | -11.00 | 8.84 | 49.50 | -51.04 | 83.54 | 0.7756 | -481.3 | 999999 | |
| 1.58 | 43.69 | 1.24 | 34.38 | 9.73 | 49.27 | -51.27 | 82.39 | 0.7780 | 558.2 | 202.5 | |
| 1.75 | -13.00 | 1.38 | -13.00 | 10.13 | 49.04 | -51.51 | 81.87 | 0.7806 | -691.0 | 999999 | |
| 4.46 | -13.00 | 3.51 | -13.00 | 9.45 | 49.14 | -51.41 | 82.75 | 0.7795 | 710.5 | 999999 | |
| 3.33 | -13.00 | 2.65 | -13.00 | 9.53 | 48.63 | -51.92 | 82.65 | 0.7849 | -580.7 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.69 | 8.55 | 48.83 | -51.72 | 83.91 | 0.7829 | -420.0 | -281.8 | |
| 0.00 | 0.79 | 0.00 | 0.64 | 10.85 | 47.46 | -53.08 | 80.97 | 0.7973 | 404.0 | 429.4 | |
| 1.31 | 1.66 | 1.08 | 1.37 | 10.98 | 47.22 | -53.32 | 80.81 | 0.7998 | 503.5 | 436.5 | |
| 0.00 | 1.40 | 0.00 | 1.15 | 9.70 | 47.13 | -53.41 | 82.42 | 0.8007 | 529.0 | 383.5 | |
| 0.00 | 2.28 | 0.00 | 1.88 | 9.14 | 46.95 | -53.60 | 83.11 | 0.8026 | 551.0 | 513.2 | |
| 0.00 | 0.96 | 0.00 | 0.80 | 9.81 | 46.64 | -53.90 | 82.28 | 0.8057 | 564.0 | 425.7 | |
| 6.65 | 8.32 | 5.56 | 6.95 | 9.25 | 46.46 | -54.09 | 82.97 | 0.8076 | 462.0 | 409.2 | |
| 0.00 | 1.14 | 0.00 | 0.96 | 10.32 | 45.88 | -54.66 | 81.64 | 0.8134 | 582.0 | 477.6 | |
| 0.00 | 1.31 | 0.00 | 1.18 | 10.73 | 43.59 | -56.95 | 81.14 | 0.8357 | 484.0 | 404.4 | |
| 0.00 | 2.36 | 0.00 | 2.14 | 10.46 | 43.27 | -57.27 | 81.46 | 0.8387 | 559.0 | 443.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
