SDO HMI 2011-10-12 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.91 | 384.65 | 43.42 | 215.54 | -14.64 | 118.62 | 18.62 | 221.32 | 0.4687 | 253.4 | 279.6 | |
|
previous
or next observation for the same group /

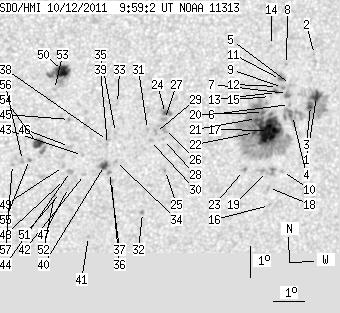

back to the solar disc SDO HMI 2011-10-12 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.39 | 40.88 | 3.62 | 23.20 | -13.83 | 121.27 | 21.27 | 226.58 | 0.4871 | 934.4 | 221.9 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -12.49 | 121.08 | 21.09 | 228.43 | 0.4714 | 713.0 | 532.2 | |
| 3.85 | -1.00 | 2.18 | -1.00 | -14.11 | 121.10 | 21.10 | 225.92 | 0.4880 | 937.7 | 999999 | |
| 0.61 | 19.70 | 0.35 | 11.15 | -14.40 | 120.53 | 20.54 | 224.70 | 0.4850 | 880.7 | 673.5 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -13.41 | 120.37 | 20.38 | 226.00 | 0.4729 | 624.0 | 553.9 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -14.05 | 120.40 | 20.40 | 225.05 | 0.4798 | 933.0 | 825.9 | |
| 0.00 | 4.38 | 0.00 | 2.46 | -13.69 | 120.30 | 20.30 | 225.45 | 0.4750 | 850.0 | 772.0 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -12.77 | 120.19 | 20.19 | 226.75 | 0.4641 | 757.0 | 587.6 | |
| 0.00 | 1.49 | 0.00 | 0.83 | -13.50 | 120.12 | 20.12 | 225.50 | 0.4709 | 906.0 | 798.8 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -16.19 | 120.38 | 20.39 | 221.92 | 0.5028 | 563.0 | 439.1 | |
| 1.31 | 4.90 | 0.73 | 2.74 | -13.24 | 120.03 | 20.04 | 225.78 | 0.4673 | 1000.5 | 785.8 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -13.46 | 119.95 | 19.96 | 225.32 | 0.4687 | 909.0 | 741.3 | |
| 1.14 | 2.28 | 0.64 | 1.28 | -13.65 | 119.93 | 19.94 | 225.01 | 0.4706 | 946.5 | 828.4 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -12.15 | 119.65 | 19.65 | 226.98 | 0.4515 | 596.0 | 446.1 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -13.77 | 119.75 | 19.75 | 224.55 | 0.4698 | 725.0 | 576.4 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -17.29 | 120.07 | 20.08 | 220.02 | 0.5118 | -711.0 | -559.6 | |
| 35.19 | 198.18 | 19.87 | 111.81 | -14.85 | 119.78 | 19.79 | 222.98 | 0.4820 | 1176.0 | 448.4 | |
| 0.00 | 1.75 | 0.00 | 1.00 | -16.70 | 119.97 | 19.98 | 220.66 | 0.5043 | 457.0 | 389.5 | |
| 0.00 | 9.10 | 0.00 | 5.19 | -16.18 | 119.88 | 19.89 | 221.25 | 0.4976 | 707.0 | 629.0 | |
| 1.58 | -17.00 | 0.88 | -17.00 | -14.27 | 119.56 | 19.57 | 223.53 | 0.4733 | 1186.2 | 999999 | |
| 0.79 | -17.00 | 0.44 | -17.00 | -14.45 | 119.35 | 19.36 | 222.94 | 0.4731 | 1253.7 | 999999 | |
| 1.93 | -17.00 | 1.08 | -17.00 | -14.90 | 119.33 | 19.33 | 222.25 | 0.4778 | 1163.3 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.14 | -16.11 | 119.08 | 19.09 | 220.18 | 0.4890 | 668.0 | 570.8 | |
| 1.66 | 6.30 | 0.92 | 3.47 | -14.19 | 116.38 | 16.38 | 218.62 | 0.4399 | -1000.2 | -732.9 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -16.03 | 116.52 | 16.53 | 216.31 | 0.4636 | -579.0 | -443.3 | |
| 0.00 | 3.06 | 0.00 | 1.69 | -14.70 | 116.38 | 16.39 | 217.89 | 0.4462 | -799.0 | -634.2 | |
| 0.00 | 2.71 | 0.00 | 1.50 | -14.38 | 116.36 | 16.36 | 218.31 | 0.4420 | -793.0 | -745.1 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -15.02 | 116.38 | 16.38 | 217.43 | 0.4500 | -654.0 | -547.4 | |
| 0.00 | 1.75 | 0.00 | 0.97 | -14.79 | 116.10 | 16.10 | 217.29 | 0.4445 | -779.0 | -745.0 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -15.04 | 115.96 | 15.96 | 216.69 | 0.4463 | -730.0 | -564.8 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -14.69 | 115.83 | 15.84 | 216.98 | 0.4408 | -908.0 | -731.1 | |
| 0.00 | 1.66 | 0.00 | 0.93 | -17.37 | 115.89 | 15.90 | 213.56 | 0.4748 | -722.0 | -580.1 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -13.83 | 114.81 | 14.82 | 216.38 | 0.4204 | -583.0 | -515.1 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -15.69 | 114.88 | 14.88 | 213.95 | 0.4447 | -723.0 | -555.1 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -14.75 | 114.81 | 14.82 | 215.08 | 0.4322 | -889.0 | -697.9 | |
| 0.00 | 1.75 | 0.00 | 0.97 | -16.33 | 114.80 | 14.80 | 212.99 | 0.4523 | -716.0 | -577.8 | |
| 0.00 | 1.75 | 0.00 | 0.97 | -16.04 | 114.71 | 14.72 | 213.20 | 0.4478 | -741.0 | -594.8 | |
| 0.00 | 1.75 | 0.00 | 0.96 | -15.00 | 114.57 | 14.58 | 214.30 | 0.4332 | -979.0 | -733.8 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -15.13 | 114.58 | 14.59 | 214.15 | 0.4349 | -833.0 | -702.8 | |
| 4.29 | 6.83 | 2.37 | 3.77 | -15.81 | 114.53 | 14.54 | 213.18 | 0.4432 | -949.2 | -740.3 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -18.10 | 114.20 | 14.20 | 209.84 | 0.4706 | -727.0 | -587.2 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -16.08 | 113.91 | 13.92 | 211.71 | 0.4416 | -680.0 | -551.3 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -15.46 | 113.81 | 13.81 | 212.28 | 0.4326 | -757.0 | -586.6 | |
| 0.00 | 2.98 | 0.00 | 1.64 | -15.97 | 113.46 | 13.46 | 210.99 | 0.4364 | -882.0 | -707.7 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -14.30 | 113.32 | 13.32 | 212.88 | 0.4130 | -805.0 | -594.0 | |
| 0.00 | 2.01 | 0.00 | 1.10 | -15.16 | 113.37 | 13.38 | 211.84 | 0.4250 | -595.0 | -439.2 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -16.49 | 113.43 | 13.43 | 210.32 | 0.4431 | -720.0 | -579.6 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -16.22 | 113.28 | 13.29 | 210.36 | 0.4384 | -680.0 | -554.0 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -15.80 | 113.22 | 13.23 | 210.76 | 0.4323 | -789.0 | -613.9 | |
| 12.69 | 25.12 | 6.82 | 13.51 | -12.73 | 113.01 | 13.01 | 214.48 | 0.3896 | 1073.2 | 619.8 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -16.64 | 113.18 | 13.19 | 209.68 | 0.4433 | -727.0 | -554.9 | |
| 0.00 | 1.40 | 0.00 | 0.77 | -16.74 | 113.00 | 13.00 | 209.23 | 0.4431 | -718.0 | -545.6 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -13.33 | 112.79 | 12.79 | 213.16 | 0.3955 | -136.0 | -120.0 | |
| 6.48 | 10.68 | 3.52 | 5.81 | -15.04 | 112.35 | 12.35 | 209.99 | 0.4150 | -1033.3 | -726.2 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -15.55 | 112.12 | 12.13 | 208.92 | 0.4202 | -718.0 | -584.8 | |
| 0.00 | 1.75 | 0.00 | 0.95 | -15.58 | 111.90 | 11.91 | 208.45 | 0.4189 | -862.0 | -627.6 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -15.70 | 111.59 | 11.60 | 207.68 | 0.4183 | -749.0 | -633.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
