SDO HMI 2011-10-12 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.70 | 405.03 | 91.24 | 341.90 | -12.31 | 48.91 | -51.08 | 110.05 | 0.8106 | -18.0 | 38.9 | |
|
previous
or next observation for the same group /

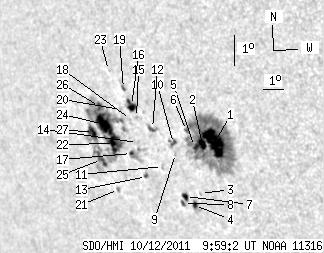

back to the solar disc SDO HMI 2011-10-12 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.20 | 200.90 | 24.04 | 160.55 | -12.15 | 51.53 | -48.46 | 110.79 | 0.7850 | 903.6 | 278.5 | |
| 4.90 | -1.00 | 3.95 | -1.00 | -12.26 | 50.95 | -49.05 | 110.70 | 0.7913 | 495.6 | 999999 | |
| 0.00 | 1.31 | 0.00 | 1.08 | -13.84 | 50.42 | -49.58 | 112.39 | 0.8017 | -203.0 | -230.7 | |
| 2.19 | 5.60 | 1.83 | 4.67 | -14.26 | 50.01 | -49.99 | 112.72 | 0.8070 | 441.1 | 221.5 | |
| 0.96 | -1.00 | 0.78 | -1.00 | -12.36 | 50.54 | -49.45 | 110.67 | 0.7956 | 283.8 | 999999 | |
| 1.75 | -1.00 | 1.43 | -1.00 | -11.88 | 50.29 | -49.71 | 110.00 | 0.7966 | 253.9 | 999999 | |
| 3.50 | 6.74 | 2.94 | 5.67 | -14.00 | 49.65 | -50.35 | 112.29 | 0.8096 | 445.6 | 392.0 | |
| 2.01 | -7.00 | 1.70 | -7.00 | -14.24 | 49.48 | -50.52 | 112.50 | 0.8119 | 272.4 | 999999 | |
| 0.00 | 1.40 | 0.00 | 1.17 | -12.66 | 49.55 | -50.44 | 110.66 | 0.8062 | 310.0 | 237.9 | |
| 2.10 | 5.25 | 1.75 | 4.37 | -12.35 | 49.54 | -50.45 | 110.29 | 0.8053 | 430.5 | 212.6 | |
| 0.00 | 1.49 | 0.00 | 1.27 | -13.13 | 48.78 | -51.21 | 110.94 | 0.8150 | -584.0 | -551.6 | |
| 0.00 | 4.99 | 0.00 | 4.22 | -11.95 | 48.62 | -51.37 | 109.50 | 0.8130 | 275.0 | 314.5 | |
| 2.01 | 2.45 | 1.75 | 2.13 | -13.52 | 47.87 | -52.13 | 111.07 | 0.8247 | 335.4 | 159.4 | |
| 0.00 | 1.49 | 0.00 | 1.29 | -12.47 | 47.73 | -52.27 | 109.80 | 0.8229 | -357.0 | -334.2 | |
| 0.00 | 1.23 | 0.00 | 1.05 | -11.67 | 47.90 | -52.09 | 108.92 | 0.8190 | -453.0 | -393.4 | |
| 6.30 | 8.75 | 5.42 | 7.53 | -11.31 | 47.75 | -52.25 | 108.44 | 0.8195 | 417.3 | 109.0 | |
| 1.58 | 12.61 | 1.38 | 10.98 | -12.85 | 47.31 | -52.68 | 110.10 | 0.8278 | -679.7 | -491.9 | |
| 0.00 | 0.96 | 0.00 | 0.83 | -11.76 | 47.58 | -52.42 | 108.92 | 0.8223 | -385.0 | -375.5 | |
| 1.49 | 2.54 | 1.28 | 2.19 | -10.81 | 47.47 | -52.52 | 107.76 | 0.8207 | 298.3 | 264.8 | |
| 0.00 | 1.84 | 0.00 | 1.61 | -11.49 | 47.14 | -52.85 | 108.46 | 0.8256 | -424.0 | -402.8 | |
| 0.00 | 2.10 | 0.00 | 1.91 | -14.08 | 46.24 | -53.75 | 111.15 | 0.8408 | -678.0 | -425.9 | |
| 13.57 | 142.68 | 12.12 | 128.77 | -12.61 | 46.51 | -53.48 | 109.55 | 0.8344 | -806.7 | -253.4 | |
| 0.00 | 0.70 | 0.00 | 0.61 | -10.30 | 46.84 | -53.16 | 106.97 | 0.8254 | -473.0 | -394.5 | |
| 19.08 | -22.00 | 17.13 | -22.00 | -12.04 | 46.16 | -53.83 | 108.79 | 0.8361 | -784.5 | 999999 | |
| 6.13 | -22.00 | 5.62 | -22.00 | -13.18 | 45.65 | -54.35 | 109.93 | 0.8437 | -377.4 | 999999 | |
| 3.15 | -22.00 | 2.83 | -22.00 | -11.49 | 46.06 | -53.93 | 108.11 | 0.8356 | -569.2 | 999999 | |
| 5.78 | -22.00 | 5.29 | -22.00 | -12.35 | 45.49 | -54.51 | 108.93 | 0.8429 | -338.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
