SDO HMI 2011-10-12 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.01 | 29.24 | 1.03 | 14.97 | 20.58 | 96.68 | -2.76 | 10.06 | 0.2561 | 59.1 | 243.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

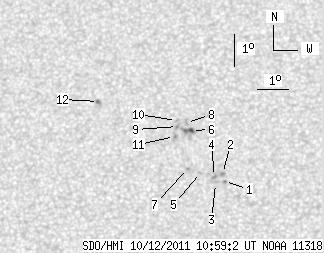

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.62 | 19.33 | 97.91 | -1.54 | 6.30 | 0.2318 | -956.0 | -862.7 | |
| 0.00 | 2.01 | 0.00 | 1.03 | 19.58 | 97.84 | -1.60 | 6.44 | 0.2361 | -939.0 | -779.1 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 19.27 | 97.63 | -1.82 | 7.49 | 0.2314 | -412.0 | -511.6 | |
| 0.00 | 1.93 | 0.00 | 0.98 | 19.48 | 97.59 | -1.86 | 7.50 | 0.2351 | -945.0 | -782.2 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 19.61 | 97.15 | -2.30 | 9.18 | 0.2382 | -717.0 | -504.9 | |
| 2.01 | 9.10 | 1.03 | 4.67 | 20.90 | 96.84 | -2.61 | 9.43 | 0.2607 | 947.4 | 653.0 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 19.73 | 96.73 | -2.72 | 10.70 | 0.2415 | -822.0 | -704.2 | |
| 0.00 | 2.71 | 0.00 | 1.39 | 21.15 | 96.67 | -2.77 | 9.84 | 0.2653 | 807.0 | 655.1 | |
| 0.00 | 1.84 | 0.00 | 0.94 | 21.02 | 96.39 | -3.06 | 10.93 | 0.2641 | 1049.0 | 836.6 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 21.21 | 96.35 | -3.10 | 10.91 | 0.2673 | 738.0 | 557.4 | |
| 0.00 | 3.15 | 0.00 | 1.62 | 20.71 | 96.30 | -3.15 | 11.49 | 0.2592 | 970.0 | 694.8 | |
| 0.00 | 2.19 | 0.00 | 1.13 | 21.78 | 93.82 | -5.63 | 18.57 | 0.2874 | 962.0 | 815.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
