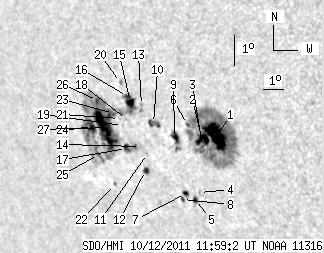

SDO HMI 2011-10-12 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115.98 | 443.85 | 96.58 | 366.80 | -12.25 | 48.80 | -50.10 | 110.34 | 0.8009 | -60.8 | 39.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.54 | 205.12 | 23.74 | 160.06 | -12.12 | 51.60 | -47.30 | 111.22 | 0.7730 | 872.4 | 269.5 | |
| 8.58 | -1.00 | 6.76 | -1.00 | -12.30 | 50.92 | -47.98 | 111.16 | 0.7806 | 522.8 | 999999 | |
| 1.05 | -1.00 | 0.83 | -1.00 | -12.49 | 50.87 | -48.03 | 111.38 | 0.7817 | 249.2 | 999999 | |
| 0.00 | 1.66 | 0.00 | 1.34 | -13.99 | 50.34 | -48.56 | 112.96 | 0.7923 | -392.0 | -328.1 | |
| 2.19 | 3.15 | 1.78 | 2.56 | -14.23 | 50.08 | -48.82 | 113.15 | 0.7957 | 348.0 | 456.1 | |
| 1.05 | -1.00 | 0.84 | -1.00 | -11.85 | 50.34 | -48.56 | 110.39 | 0.7850 | 194.6 | 999999 | |
| 2.36 | 3.76 | 1.94 | 3.09 | -14.07 | 49.65 | -49.25 | 112.79 | 0.7993 | 467.7 | 520.6 | |
| 1.49 | 2.19 | 1.23 | 1.80 | -14.28 | 49.45 | -49.45 | 112.95 | 0.8019 | 296.2 | 268.8 | |
| 5.95 | 12.16 | 4.82 | 9.85 | -12.31 | 49.61 | -49.29 | 110.68 | 0.7938 | 350.2 | 213.4 | |
| 0.00 | 7.26 | 0.00 | 5.98 | -11.95 | 48.71 | -50.19 | 109.91 | 0.8015 | 605.0 | 328.0 | |
| 0.00 | 0.79 | 0.00 | 0.66 | -12.94 | 48.15 | -50.75 | 110.88 | 0.8100 | -343.0 | -281.9 | |
| 2.45 | 3.68 | 2.08 | 3.12 | -13.50 | 47.89 | -51.01 | 111.44 | 0.8142 | 295.6 | 140.2 | |
| 0.00 | 1.31 | 0.00 | 1.09 | -11.43 | 48.26 | -50.64 | 109.12 | 0.8043 | 474.0 | 371.7 | |
| 0.00 | 1.23 | 0.00 | 1.03 | -12.74 | 47.86 | -51.04 | 110.54 | 0.8121 | -277.0 | -284.1 | |
| 4.03 | 185.43 | 3.38 | 162.43 | -11.38 | 47.74 | -51.16 | 108.88 | 0.8093 | 361.7 | -204.8 | |
| 0.88 | -15.00 | 0.73 | -15.00 | -11.20 | 47.64 | -51.26 | 108.64 | 0.8097 | 356.9 | 999999 | |
| 3.85 | 10.85 | 3.31 | 9.29 | -12.87 | 47.13 | -51.76 | 110.43 | 0.8194 | -683.5 | -649.0 | |
| 0.00 | 0.53 | 0.00 | 0.45 | -11.94 | 47.39 | -51.50 | 109.43 | 0.8142 | -764.0 | -678.5 | |
| 0.00 | 0.96 | 0.00 | 0.82 | -12.15 | 47.14 | -51.76 | 109.59 | 0.8172 | -551.0 | -478.8 | |
| 0.00 | 1.93 | 0.00 | 1.62 | -10.79 | 47.39 | -51.51 | 108.06 | 0.8109 | 456.0 | 361.5 | |
| 0.00 | 0.44 | 0.00 | 0.37 | -11.94 | 47.05 | -51.85 | 109.31 | 0.8175 | -515.0 | -563.2 | |
| 0.88 | 1.40 | 0.78 | 1.24 | -14.09 | 46.15 | -52.75 | 111.50 | 0.8320 | -412.2 | -285.0 | |
| 0.35 | -15.00 | 0.30 | -15.00 | -11.80 | 46.78 | -52.11 | 109.06 | 0.8196 | -791.5 | 999999 | |
| 42.53 | -15.00 | 37.18 | -15.00 | -12.29 | 46.25 | -52.65 | 109.45 | 0.8259 | -773.6 | 999999 | |
| 1.23 | -15.00 | 1.09 | -15.00 | -13.19 | 45.61 | -53.28 | 110.28 | 0.8342 | -383.6 | 999999 | |
| 2.54 | -15.00 | 2.21 | -15.00 | -11.46 | 46.07 | -52.83 | 108.43 | 0.8253 | -569.9 | 999999 | |
| 4.03 | -15.00 | 3.58 | -15.00 | -12.35 | 45.56 | -53.34 | 109.29 | 0.8324 | -394.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
