SDO HMI 2011-10-12 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.07 | 54.94 | 10.78 | 28.05 | 20.05 | 97.15 | -0.65 | 2.33 | 0.2433 | -104.1 | -68.2 | |
|
previous
or next observation for the same group /

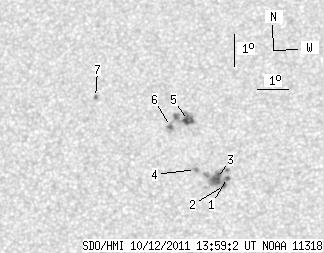

back to the solar disc SDO HMI 2011-10-12 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.31 | 29.57 | 0.67 | 15.04 | 19.33 | 98.01 | 0.21 | 359.14 | 0.2305 | -939.1 | -524.2 | |
| 1.92 | -1.00 | 0.98 | -1.00 | 19.08 | 97.91 | 0.11 | 359.52 | 0.2262 | -820.9 | 999999 | |
| 7.52 | -1.00 | 3.83 | -1.00 | 19.30 | 97.66 | -0.14 | 0.57 | 0.2299 | -1044.2 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 19.57 | 96.99 | -0.81 | 3.25 | 0.2350 | -1012.0 | -826.6 | |
| 7.00 | 16.71 | 3.59 | 8.57 | 21.08 | 96.76 | -1.04 | 3.73 | 0.2609 | 1040.8 | 762.8 | |
| 1.92 | 4.46 | 0.99 | 2.29 | 20.90 | 96.19 | -1.61 | 5.87 | 0.2585 | 900.9 | 665.6 | |
| 1.40 | 1.84 | 0.72 | 0.95 | 21.78 | 93.76 | -4.04 | 13.57 | 0.2802 | 819.0 | 730.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
