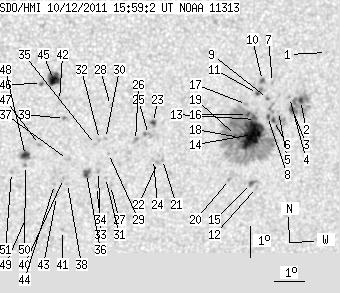

SDO HMI 2011-10-12 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.95 | 349.55 | 41.60 | 200.50 | -14.64 | 118.78 | 22.09 | 226.23 | 0.5049 | 275.2 | 278.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.61 | -12.30 | 122.06 | 25.36 | 233.90 | 0.5201 | 674.0 | 493.9 | |
| 2.19 | 29.12 | 1.27 | 16.94 | -13.79 | 121.34 | 24.64 | 230.80 | 0.5246 | 884.7 | 376.0 | |
| 2.89 | -2.00 | 1.68 | -2.00 | -14.06 | 121.10 | 24.40 | 230.11 | 0.5244 | 850.0 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -13.67 | 120.96 | 24.26 | 230.53 | 0.5192 | 833.0 | 686.5 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -14.10 | 120.63 | 23.94 | 229.50 | 0.5195 | 574.0 | 453.0 | |
| 1.57 | 223.62 | 0.91 | 129.19 | -14.39 | 120.50 | 23.80 | 228.92 | 0.5206 | 772.2 | 425.6 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -13.17 | 120.33 | 23.63 | 230.58 | 0.5073 | 668.0 | 492.3 | |
| 1.49 | -6.00 | 0.86 | -6.00 | -14.25 | 120.28 | 23.58 | 228.87 | 0.5168 | 679.4 | 999999 | |
| 1.14 | 1.84 | 0.65 | 1.06 | -13.67 | 120.22 | 23.52 | 229.67 | 0.5107 | 868.1 | 587.1 | |
| 0.87 | 2.36 | 0.50 | 1.35 | -13.09 | 119.99 | 23.29 | 230.29 | 0.5026 | 966.4 | 809.5 | |
| 1.31 | 4.46 | 0.75 | 2.56 | -13.50 | 119.86 | 23.16 | 229.51 | 0.5050 | 885.9 | 813.8 | |
| 0.00 | 1.75 | 0.00 | 1.03 | -16.52 | 120.18 | 23.48 | 225.48 | 0.5379 | 643.0 | 465.3 | |
| 0.79 | -6.00 | 0.45 | -6.00 | -14.33 | 119.88 | 23.18 | 228.27 | 0.5132 | 920.9 | 999999 | |
| 32.10 | -6.00 | 18.55 | -6.00 | -14.80 | 119.84 | 23.14 | 227.51 | 0.5173 | 1149.2 | 999999 | |
| 2.80 | 4.20 | 1.64 | 2.46 | -16.38 | 119.99 | 23.29 | 225.44 | 0.5346 | 792.2 | 597.5 | |
| 1.75 | -6.00 | 1.00 | -6.00 | -14.15 | 119.60 | 22.90 | 228.18 | 0.5083 | 1019.5 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.15 | -13.83 | 119.53 | 22.83 | 228.58 | 0.5044 | 823.0 | 736.4 | |
| 1.40 | -6.00 | 0.81 | -6.00 | -14.88 | 119.41 | 22.71 | 226.87 | 0.5133 | 1133.3 | 999999 | |
| 0.79 | -6.00 | 0.45 | -6.00 | -14.81 | 119.27 | 22.57 | 226.79 | 0.5111 | 1046.6 | 999999 | |
| 0.00 | 1.75 | 0.00 | 1.02 | -16.22 | 119.23 | 22.53 | 224.72 | 0.5249 | 754.0 | 523.2 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -15.48 | 116.91 | 20.21 | 222.68 | 0.4931 | -553.0 | -487.8 | |
| 0.00 | 1.75 | 0.00 | 0.99 | -15.57 | 116.75 | 20.05 | 222.33 | 0.4925 | -652.0 | -536.2 | |
| 2.01 | 3.32 | 1.13 | 1.87 | -14.28 | 116.49 | 19.79 | 223.84 | 0.4757 | -857.9 | -736.3 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -15.47 | 116.61 | 19.91 | 222.27 | 0.4899 | -727.0 | -581.5 | |
| 0.00 | 4.02 | 0.00 | 2.27 | -14.66 | 116.36 | 19.67 | 223.09 | 0.4785 | -796.0 | -710.1 | |
| 0.00 | 2.71 | 0.00 | 1.53 | -14.84 | 115.95 | 19.26 | 222.24 | 0.4762 | -994.0 | -723.0 | |
| 0.00 | 1.75 | 0.00 | 0.99 | -16.26 | 115.27 | 18.57 | 219.22 | 0.4855 | -550.0 | -494.6 | |
| 0.00 | 1.49 | 0.00 | 0.83 | -13.69 | 115.04 | 18.34 | 222.57 | 0.4538 | -589.0 | -449.1 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -15.22 | 115.11 | 18.41 | 220.41 | 0.4720 | -800.0 | -685.3 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -14.74 | 114.96 | 18.27 | 220.89 | 0.4650 | -874.0 | -642.4 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -16.00 | 115.08 | 18.38 | 219.29 | 0.4806 | -575.0 | -424.8 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -14.76 | 114.77 | 18.07 | 220.55 | 0.4633 | -791.0 | -741.6 | |
| 0.00 | 1.75 | 0.00 | 0.98 | -15.79 | 114.83 | 18.13 | 219.19 | 0.4758 | -771.0 | -599.1 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -16.28 | 114.81 | 18.11 | 218.50 | 0.4813 | -619.0 | -443.8 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -14.92 | 114.65 | 17.96 | 220.15 | 0.4639 | -709.0 | -588.8 | |
| 4.29 | 5.60 | 2.41 | 3.14 | -15.84 | 114.44 | 17.74 | 218.52 | 0.4727 | -928.1 | -739.9 | |
| 0.00 | 2.27 | 0.00 | 1.27 | -15.37 | 113.78 | 17.08 | 218.12 | 0.4608 | -280.0 | -303.9 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -16.15 | 113.85 | 17.15 | 217.17 | 0.4707 | -573.0 | -448.5 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -14.06 | 113.58 | 16.88 | 219.68 | 0.4431 | -861.0 | -695.5 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -15.98 | 113.71 | 17.01 | 217.16 | 0.4674 | -826.0 | -648.3 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -17.67 | 113.83 | 17.13 | 215.19 | 0.4891 | -758.0 | -646.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -13.48 | 113.38 | 16.68 | 220.20 | 0.4342 | 585.0 | 558.2 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -16.56 | 113.53 | 16.83 | 216.12 | 0.4728 | -717.0 | -610.1 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -16.17 | 113.43 | 16.73 | 216.47 | 0.4671 | -787.0 | -635.6 | |
| 9.71 | 14.61 | 5.30 | 7.98 | -12.80 | 113.14 | 16.44 | 220.84 | 0.4237 | 1052.8 | 721.5 | |
| 0.52 | 1.75 | 0.29 | 0.95 | -12.92 | 112.76 | 16.06 | 220.01 | 0.4213 | 981.8 | 860.6 | |
| 0.00 | 1.57 | 0.00 | 0.87 | -14.86 | 112.84 | 16.14 | 217.26 | 0.4456 | -723.0 | -672.6 | |
| 5.33 | 11.89 | 2.95 | 6.58 | -15.20 | 112.41 | 15.71 | 216.06 | 0.4458 | -1000.1 | -603.2 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -17.24 | 112.58 | 15.88 | 213.70 | 0.4729 | -782.0 | -642.6 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -15.52 | 112.44 | 15.74 | 215.67 | 0.4501 | -688.0 | -545.2 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -15.74 | 112.00 | 15.30 | 214.63 | 0.4489 | -851.0 | -658.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
