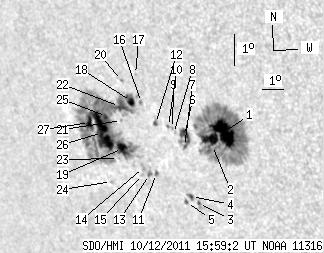

SDO HMI 2011-10-12 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.09 | 528.21 | 98.12 | 418.57 | -12.23 | 48.64 | -48.05 | 111.09 | 0.7806 | 33.5 | -14.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.00 | 218.73 | 34.32 | 163.06 | -12.07 | 51.57 | -45.13 | 112.06 | 0.7502 | 896.3 | 302.3 | |
| 0.26 | -1.00 | 0.20 | -1.00 | -12.45 | 51.13 | -45.57 | 112.35 | 0.7562 | 462.3 | 999999 | |
| 1.31 | 3.15 | 1.02 | 2.46 | -14.37 | 50.03 | -46.67 | 114.22 | 0.7750 | 417.3 | 307.8 | |
| 1.40 | 3.32 | 1.10 | 2.61 | -14.17 | 49.77 | -46.93 | 113.86 | 0.7768 | 613.5 | 580.8 | |
| 1.57 | 2.01 | 1.24 | 1.59 | -14.38 | 49.48 | -47.22 | 114.00 | 0.7805 | 347.9 | 332.8 | |
| 8.22 | 15.30 | 6.33 | 11.80 | -12.23 | 49.94 | -46.76 | 111.57 | 0.7679 | 549.9 | 25.1 | |
| 1.05 | -6.00 | 0.81 | -6.00 | -12.59 | 49.86 | -46.84 | 111.97 | 0.7700 | 206.1 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.27 | -12.21 | 49.45 | -47.25 | 111.34 | 0.7728 | 272.0 | 265.8 | |
| 0.00 | 0.96 | 0.00 | 0.75 | -12.05 | 49.44 | -47.26 | 111.15 | 0.7724 | 501.0 | 407.9 | |
| 0.00 | 1.49 | 0.00 | 1.16 | -12.01 | 49.27 | -47.43 | 111.02 | 0.7740 | 496.0 | 438.2 | |
| 0.96 | 2.45 | 0.77 | 1.96 | -13.56 | 48.32 | -48.37 | 112.52 | 0.7889 | 510.9 | 439.6 | |
| 1.57 | 2.62 | 1.24 | 2.07 | -11.96 | 48.69 | -48.01 | 110.73 | 0.7798 | 352.7 | 214.8 | |
| 0.70 | 2.97 | 0.57 | 2.40 | -13.62 | 47.98 | -48.72 | 112.46 | 0.7925 | 264.8 | 52.0 | |
| 0.00 | 2.71 | 0.00 | 2.20 | -13.42 | 47.75 | -48.94 | 112.13 | 0.7941 | -411.0 | -342.8 | |
| 0.00 | 0.70 | 0.00 | 0.57 | -13.65 | 47.64 | -49.06 | 112.36 | 0.7959 | 130.0 | 72.4 | |
| 0.00 | 1.31 | 0.00 | 1.04 | -11.34 | 48.18 | -48.51 | 109.79 | 0.7828 | 620.0 | 516.3 | |
| 0.00 | 0.87 | 0.00 | 0.69 | -10.48 | 48.10 | -48.60 | 108.70 | 0.7810 | -539.0 | -432.3 | |
| 4.11 | 265.43 | 3.29 | 220.78 | -11.35 | 47.72 | -48.98 | 109.62 | 0.7876 | 496.8 | -266.8 | |
| 7.87 | -18.00 | 6.48 | -18.00 | -12.89 | 46.90 | -49.79 | 111.17 | 0.8006 | -895.0 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.98 | -10.73 | 47.39 | -49.31 | 108.74 | 0.7889 | 492.0 | 414.9 | |
| 0.00 | 0.96 | 0.00 | 0.78 | -12.00 | 47.09 | -49.61 | 110.17 | 0.7959 | -675.0 | -618.4 | |
| 11.81 | -18.00 | 9.58 | -18.00 | -11.56 | 47.10 | -49.59 | 109.65 | 0.7944 | -581.6 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.51 | -13.23 | 46.62 | -50.08 | 111.46 | 0.8045 | -417.0 | -388.7 | |
| 0.00 | 1.05 | 0.00 | 0.89 | -14.00 | 46.05 | -50.65 | 112.16 | 0.8124 | -432.0 | -456.7 | |
| 0.44 | -18.00 | 0.36 | -18.00 | -11.93 | 46.39 | -50.31 | 109.84 | 0.8026 | -920.0 | 999999 | |
| 32.27 | -18.00 | 26.97 | -18.00 | -12.46 | 46.06 | -50.64 | 110.35 | 0.8074 | -791.5 | 999999 | |
| 4.55 | -18.00 | 3.84 | -18.00 | -12.19 | 45.49 | -51.20 | 109.83 | 0.8120 | -378.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
