SDO HMI 2011-10-12 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.91 | 542.09 | 87.30 | 425.00 | -12.30 | 48.55 | -47.59 | 111.35 | 0.7760 | 59.8 | -26.7 | |
|
previous
or next observation for the same group /

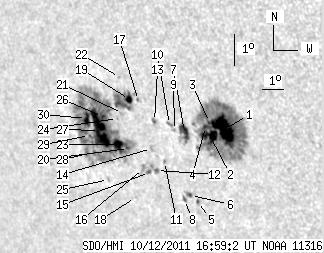

back to the solar disc SDO HMI 2011-10-12 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.78 | 219.67 | 22.64 | 161.98 | -11.98 | 51.77 | -44.37 | 112.29 | 0.7416 | 1041.2 | 338.3 | |
| 13.03 | -1.00 | 9.71 | -1.00 | -12.25 | 51.16 | -44.99 | 112.35 | 0.7493 | 603.1 | 999999 | |
| 1.22 | -1.00 | 0.91 | -1.00 | -11.81 | 51.21 | -44.94 | 111.81 | 0.7471 | 490.9 | 999999 | |
| 1.49 | -1.00 | 1.11 | -1.00 | -11.95 | 51.00 | -45.14 | 111.90 | 0.7498 | 260.1 | 999999 | |
| 1.49 | 2.10 | 1.15 | 1.62 | -14.38 | 50.06 | -46.08 | 114.50 | 0.7691 | 392.5 | 346.4 | |
| 1.22 | 2.89 | 0.95 | 2.24 | -14.22 | 49.80 | -46.35 | 114.18 | 0.7712 | 654.1 | 627.4 | |
| 9.27 | 16.09 | 7.05 | 12.25 | -12.18 | 50.03 | -46.12 | 111.78 | 0.7610 | 520.3 | 71.7 | |
| 1.22 | 2.19 | 0.96 | 1.71 | -14.37 | 49.48 | -46.66 | 114.22 | 0.7749 | 356.9 | 319.6 | |
| 0.00 | 1.05 | 0.00 | 0.80 | -12.19 | 49.58 | -46.56 | 111.59 | 0.7657 | 394.0 | 329.2 | |
| 0.00 | 2.45 | 0.00 | 1.88 | -12.01 | 49.40 | -46.75 | 111.30 | 0.7669 | 580.0 | 450.0 | |
| 0.00 | 1.57 | 0.00 | 1.23 | -13.22 | 48.88 | -47.26 | 112.57 | 0.7766 | 383.0 | 333.2 | |
| 0.52 | 4.46 | 0.42 | 3.53 | -13.53 | 48.43 | -47.71 | 112.77 | 0.7823 | 640.8 | 349.6 | |
| 0.96 | 2.45 | 0.75 | 1.91 | -11.97 | 48.73 | -47.42 | 110.98 | 0.7737 | 296.0 | 329.9 | |
| 0.00 | 2.27 | 0.00 | 1.79 | -12.85 | 48.38 | -47.76 | 111.91 | 0.7803 | -590.0 | -440.7 | |
| 1.40 | 2.01 | 1.12 | 1.60 | -13.63 | 48.09 | -48.06 | 112.73 | 0.7861 | 328.2 | 90.0 | |
| 0.00 | 2.89 | 0.00 | 2.31 | -13.52 | 47.84 | -48.31 | 112.50 | 0.7882 | -412.0 | -250.3 | |
| 0.00 | 1.75 | 0.00 | 1.37 | -11.36 | 48.14 | -48.01 | 110.00 | 0.7777 | 522.0 | 462.2 | |
| 0.00 | 0.96 | 0.00 | 0.79 | -14.49 | 47.18 | -48.96 | 113.40 | 0.7980 | -444.0 | -344.6 | |
| 4.02 | 31.48 | 3.18 | 25.05 | -11.37 | 47.73 | -48.42 | 109.85 | 0.7820 | 497.1 | -237.7 | |
| 1.22 | 240.22 | 0.99 | 198.40 | -12.94 | 47.29 | -48.85 | 111.59 | 0.7915 | -947.8 | -305.5 | |
| 0.00 | 2.01 | 0.00 | 1.61 | -11.84 | 47.29 | -48.86 | 110.26 | 0.7879 | -580.0 | -495.5 | |
| 0.00 | 0.96 | 0.00 | 0.76 | -10.71 | 47.41 | -48.74 | 108.93 | 0.7831 | 584.0 | 473.0 | |
| 6.56 | -20.00 | 5.34 | -20.00 | -12.85 | 46.85 | -49.30 | 111.31 | 0.7957 | -980.0 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.78 | -12.02 | 47.01 | -49.13 | 110.37 | 0.7913 | -646.0 | -599.8 | |
| 0.00 | 1.66 | 0.00 | 1.39 | -14.02 | 46.04 | -50.11 | 112.38 | 0.8073 | -404.0 | -367.1 | |
| 0.52 | -20.00 | 0.43 | -20.00 | -12.02 | 46.30 | -49.84 | 110.11 | 0.7983 | -1121.0 | 999999 | |
| 31.31 | -20.00 | 25.85 | -20.00 | -12.48 | 46.04 | -50.11 | 110.56 | 0.8023 | -847.3 | 999999 | |
| 0.61 | -20.00 | 0.51 | -20.00 | -13.21 | 45.50 | -50.65 | 111.23 | 0.8099 | -260.9 | 999999 | |
| 0.87 | -20.00 | 0.73 | -20.00 | -12.68 | 45.50 | -50.65 | 110.60 | 0.8082 | -187.1 | 999999 | |
| 4.20 | -20.00 | 3.50 | -20.00 | -12.15 | 45.50 | -50.65 | 109.97 | 0.8065 | -505.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
