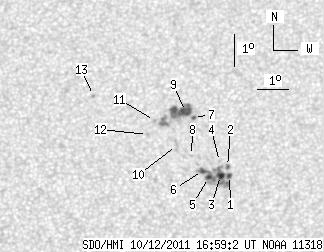

SDO HMI 2011-10-12 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.40 | 86.67 | 12.46 | 44.27 | 20.22 | 97.13 | 0.99 | 356.07 | 0.2465 | -122.6 | -60.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.01 | 39.53 | 1.02 | 20.11 | 19.26 | 98.13 | 1.99 | 351.84 | 0.2316 | -877.1 | -817.2 | |
| 1.75 | 1.84 | 0.89 | 0.94 | 19.53 | 98.07 | 1.93 | 352.25 | 0.2361 | -678.5 | -535.0 | |
| 3.94 | -1.00 | 2.00 | -1.00 | 19.26 | 97.85 | 1.70 | 353.00 | 0.2310 | -1225.2 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 19.69 | 97.82 | 1.67 | 353.34 | 0.2382 | -769.0 | -614.1 | |
| 2.01 | -1.00 | 1.02 | -1.00 | 19.20 | 97.47 | 1.32 | 354.52 | 0.2293 | -1082.8 | 999999 | |
| 3.06 | -1.00 | 1.56 | -1.00 | 19.41 | 97.28 | 1.13 | 355.38 | 0.2326 | -1031.6 | 999999 | |
| 1.49 | 36.03 | 0.76 | 18.48 | 21.05 | 97.00 | 0.86 | 356.91 | 0.2600 | 897.5 | 841.8 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 19.87 | 96.93 | 0.79 | 356.90 | 0.2401 | -622.0 | -383.5 | |
| 10.14 | -7.00 | 5.21 | -7.00 | 21.23 | 96.75 | 0.60 | 357.86 | 0.2630 | 1056.0 | 999999 | |
| 0.00 | 3.41 | 0.00 | 1.74 | 20.18 | 96.46 | 0.31 | 358.81 | 0.2450 | 20.0 | -15.9 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 20.95 | 95.75 | -0.39 | 1.43 | 0.2582 | -610.0 | -358.1 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 20.52 | 95.53 | -0.61 | 2.31 | 0.2510 | -756.0 | -438.9 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 21.72 | 93.79 | -2.36 | 8.06 | 0.2739 | 953.0 | 778.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
