SDO HMI 2011-10-12 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.68 | 538.82 | 56.59 | 305.94 | 23.14 | 120.24 | 24.65 | 308.26 | 0.4905 | -1485.6 | -408.8 | |
|
previous
or next observation for the same group /

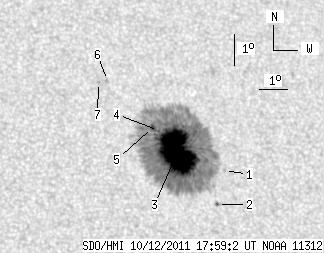

back to the solar disc SDO HMI 2011-10-12 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.60 | 22.45 | 121.83 | 26.24 | 305.56 | 0.5043 | -345.0 | -166.7 | |
| 1.22 | 1.92 | 0.70 | 1.09 | 21.40 | 121.37 | 25.78 | 304.11 | 0.4911 | 532.5 | 522.6 | |
| 94.79 | 533.05 | 53.81 | 302.67 | 23.11 | 120.27 | 24.68 | 308.18 | 0.4905 | -1583.1 | -409.8 | |
| 1.92 | -3.00 | 1.09 | -3.00 | 23.79 | 119.73 | 24.13 | 309.91 | 0.4897 | -936.6 | 999999 | |
| 1.75 | -3.00 | 0.99 | -3.00 | 23.90 | 119.53 | 23.94 | 310.29 | 0.4883 | -870.0 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.04 | 25.44 | 118.23 | 22.63 | 314.29 | 0.4874 | -788.0 | -604.2 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 25.39 | 117.89 | 22.30 | 314.59 | 0.4833 | -700.0 | -531.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
