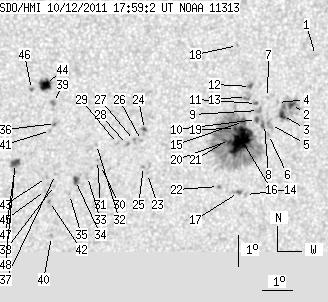

SDO HMI 2011-10-12 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.70 | 323.85 | 40.11 | 187.47 | -14.57 | 119.02 | 23.42 | 228.04 | 0.5186 | 345.5 | 340.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.61 | -12.23 | 122.07 | 26.48 | 235.18 | 0.5329 | 732.0 | 500.2 | |
| 2.80 | 32.44 | 1.64 | 19.04 | -13.74 | 121.43 | 25.83 | 232.17 | 0.5380 | 855.3 | 406.0 | |
| 3.76 | -2.00 | 2.21 | -2.00 | -14.08 | 121.16 | 25.56 | 231.38 | 0.5378 | 805.4 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -13.66 | 120.94 | 25.34 | 231.77 | 0.5315 | 703.0 | 607.4 | |
| 0.00 | 5.33 | 0.00 | 3.12 | -14.35 | 120.78 | 25.18 | 230.56 | 0.5359 | 569.0 | 516.8 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -14.67 | 120.75 | 25.16 | 230.06 | 0.5385 | 444.0 | 229.9 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -13.48 | 120.58 | 24.98 | 231.64 | 0.5258 | 732.0 | 496.1 | |
| 0.52 | 7.61 | 0.31 | 4.44 | -14.34 | 120.57 | 24.98 | 230.35 | 0.5335 | 813.2 | 708.3 | |
| 0.00 | 3.76 | 0.00 | 2.19 | -13.88 | 120.32 | 24.72 | 230.74 | 0.5264 | 724.0 | 630.2 | |
| 2.01 | -8.00 | 1.17 | -8.00 | -14.17 | 120.28 | 24.69 | 230.28 | 0.5286 | 707.9 | 999999 | |
| 1.66 | 2.01 | 0.96 | 1.17 | -13.66 | 120.22 | 24.63 | 230.98 | 0.5233 | 779.4 | 502.8 | |
| 1.66 | 1.92 | 0.96 | 1.11 | -13.11 | 119.96 | 24.36 | 231.53 | 0.5152 | 866.4 | 847.3 | |
| 0.00 | 6.38 | 0.00 | 3.69 | -13.42 | 119.86 | 24.26 | 230.93 | 0.5169 | 828.0 | 778.9 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -16.57 | 120.21 | 24.62 | 226.74 | 0.5503 | 641.0 | 530.8 | |
| 3.15 | 195.52 | 1.83 | 113.87 | -14.21 | 119.85 | 24.25 | 229.71 | 0.5240 | 889.4 | 439.2 | |
| 29.82 | -15.00 | 17.38 | -15.00 | -14.78 | 119.84 | 24.25 | 228.86 | 0.5294 | 1144.5 | 999999 | |
| 1.75 | 3.32 | 1.03 | 1.96 | -16.49 | 119.96 | 24.36 | 226.56 | 0.5469 | 806.4 | 612.2 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -11.79 | 119.39 | 23.80 | 232.98 | 0.4967 | 737.0 | 611.3 | |
| 1.14 | -15.00 | 0.66 | -15.00 | -14.42 | 119.60 | 24.00 | 229.11 | 0.5232 | 1322.8 | 999999 | |
| 0.79 | -15.00 | 0.46 | -15.00 | -14.80 | 119.44 | 23.84 | 228.36 | 0.5250 | 1187.6 | 999999 | |
| 1.14 | -15.00 | 0.66 | -15.00 | -14.82 | 119.31 | 23.71 | 228.17 | 0.5238 | 1074.5 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.82 | -16.27 | 119.25 | 23.65 | 226.03 | 0.5372 | 507.0 | 613.5 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -15.74 | 116.79 | 21.20 | 223.66 | 0.5061 | -506.0 | -389.5 | |
| 1.66 | 3.41 | 0.94 | 1.93 | -14.32 | 116.55 | 20.95 | 225.40 | 0.4886 | -846.5 | -654.2 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -15.51 | 116.63 | 21.04 | 223.78 | 0.5020 | -679.0 | -531.1 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -14.67 | 116.48 | 20.89 | 224.79 | 0.4915 | -716.0 | -601.7 | |
| 0.00 | 1.57 | 0.00 | 0.89 | -14.66 | 116.25 | 20.65 | 224.49 | 0.4889 | -1007.0 | -742.9 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -14.78 | 116.03 | 20.43 | 224.01 | 0.4879 | -902.0 | -784.5 | |
| 0.00 | 1.66 | 0.00 | 0.94 | -14.74 | 115.69 | 20.10 | 223.60 | 0.4839 | -765.0 | -578.5 | |
| 0.00 | 1.40 | 0.00 | 0.79 | -15.42 | 115.20 | 19.61 | 221.90 | 0.4863 | -679.0 | -548.8 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -15.26 | 115.09 | 19.49 | 221.97 | 0.4833 | -792.0 | -600.3 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -14.74 | 115.00 | 19.41 | 222.60 | 0.4767 | -817.0 | -603.7 | |
| 0.00 | 2.54 | 0.00 | 1.44 | -15.76 | 114.81 | 19.21 | 220.85 | 0.4861 | -783.0 | -573.2 | |
| 3.50 | 3.93 | 1.98 | 2.22 | -15.88 | 114.42 | 18.83 | 220.13 | 0.4836 | -876.2 | -957.6 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -16.32 | 114.27 | 18.67 | 219.29 | 0.4873 | -667.0 | -523.6 | |
| 0.00 | 2.71 | 0.00 | 1.51 | -14.02 | 113.60 | 18.01 | 221.54 | 0.4542 | -611.0 | -478.5 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -15.66 | 113.75 | 18.15 | 219.40 | 0.4745 | -859.0 | -652.9 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -16.02 | 113.75 | 18.15 | 218.92 | 0.4786 | -693.0 | -639.5 | |
| 0.00 | 2.71 | 0.00 | 1.50 | -13.35 | 113.49 | 17.89 | 222.38 | 0.4453 | 898.0 | 676.5 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -17.67 | 113.81 | 18.22 | 216.85 | 0.4988 | -804.0 | -614.5 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -14.24 | 113.46 | 17.87 | 220.99 | 0.4552 | -588.0 | -514.8 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -16.53 | 113.63 | 18.04 | 218.05 | 0.4836 | -761.0 | -611.4 | |
| 0.00 | 1.31 | 0.00 | 0.74 | -15.75 | 113.46 | 17.87 | 218.84 | 0.4727 | -830.0 | -639.7 | |
| 9.01 | 12.68 | 4.95 | 6.97 | -12.77 | 113.19 | 17.59 | 222.81 | 0.4355 | 1046.0 | 637.6 | |
| 0.00 | 1.40 | 0.00 | 0.79 | -16.17 | 113.47 | 17.87 | 218.28 | 0.4777 | -754.0 | -639.5 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -12.92 | 112.75 | 17.15 | 221.86 | 0.4325 | 989.0 | 835.7 | |
| 5.33 | 6.30 | 2.97 | 3.50 | -15.26 | 112.41 | 16.82 | 217.83 | 0.4569 | -992.3 | -881.1 | |
| 0.00 | 1.57 | 0.00 | 0.88 | -15.52 | 112.40 | 16.80 | 217.46 | 0.4599 | -708.0 | -613.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
