SDO HMI 2011-10-12 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.96 | 677.31 | 68.68 | 447.55 | 26.98 | 57.94 | -37.65 | 55.29 | 0.6642 | -1015.6 | -367.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

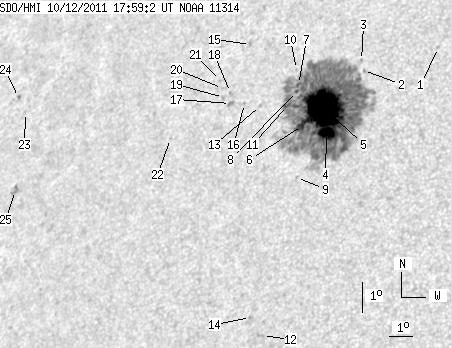

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.89 | 29.33 | 62.22 | -33.37 | 49.46 | 0.6334 | -610.0 | -442.1 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 28.42 | 59.45 | -36.15 | 52.49 | 0.6563 | 530.0 | 468.0 | |
| 0.00 | 1.22 | 0.00 | 0.81 | 28.74 | 59.24 | -36.36 | 52.18 | 0.6603 | 521.0 | 420.4 | |
| 12.15 | 647.07 | 7.93 | 425.97 | 26.36 | 58.69 | -36.91 | 55.79 | 0.6530 | -1417.7 | -382.5 | |
| 82.72 | -4.00 | 54.50 | -4.00 | 27.11 | 58.27 | -37.32 | 54.97 | 0.6614 | -1288.2 | 999999 | |
| 2.01 | -4.00 | 1.33 | -4.00 | 26.52 | 57.61 | -37.98 | 56.14 | 0.6655 | -696.8 | 999999 | |
| 1.66 | -4.00 | 1.12 | -4.00 | 27.81 | 56.92 | -38.68 | 54.73 | 0.6794 | -374.5 | 999999 | |
| 1.31 | -4.00 | 0.88 | -4.00 | 27.58 | 56.92 | -38.67 | 55.04 | 0.6781 | -457.3 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.80 | 24.87 | 57.98 | -37.62 | 58.28 | 0.6534 | 587.0 | 478.2 | |
| 0.00 | 1.05 | 0.00 | 0.71 | 28.28 | 56.62 | -38.97 | 54.24 | 0.6848 | 169.0 | 122.8 | |
| 3.06 | -4.00 | 2.06 | -4.00 | 27.11 | 56.73 | -38.87 | 55.77 | 0.6779 | -286.7 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.72 | 19.91 | 58.16 | -37.43 | 65.55 | 0.6300 | -829.0 | -618.1 | |
| 0.00 | 0.96 | 0.00 | 0.66 | 27.04 | 55.58 | -40.01 | 56.43 | 0.6896 | -533.0 | -345.5 | |
| 0.00 | 1.31 | 0.00 | 0.84 | 20.43 | 57.53 | -38.07 | 65.02 | 0.6397 | -746.0 | -618.9 | |
| 0.00 | 1.84 | 0.00 | 1.29 | 28.95 | 54.26 | -41.34 | 54.52 | 0.7120 | -691.0 | -511.0 | |
| 0.00 | 1.05 | 0.00 | 0.72 | 27.06 | 54.87 | -40.73 | 56.74 | 0.6972 | -619.0 | -478.8 | |
| 0.00 | 3.24 | 0.00 | 2.25 | 27.02 | 54.26 | -41.34 | 57.07 | 0.7033 | -712.0 | -578.4 | |
| 0.00 | 1.31 | 0.00 | 0.92 | 27.37 | 54.10 | -41.49 | 56.68 | 0.7065 | -732.0 | -641.0 | |
| 0.00 | 2.01 | 0.00 | 1.41 | 27.19 | 53.87 | -41.73 | 57.02 | 0.7081 | -669.0 | -588.0 | |
| 0.00 | 0.87 | 0.00 | 0.61 | 27.47 | 53.69 | -41.90 | 56.72 | 0.7111 | -640.0 | -559.4 | |
| 0.00 | 1.22 | 0.00 | 0.86 | 27.72 | 53.48 | -42.11 | 56.49 | 0.7143 | -549.0 | -484.6 | |
| 0.00 | 0.87 | 0.00 | 0.62 | 25.74 | 52.12 | -43.48 | 59.66 | 0.7205 | -485.0 | -408.1 | |
| 0.00 | 1.31 | 0.00 | 1.06 | 26.04 | 44.84 | -50.75 | 61.58 | 0.7934 | 517.0 | 506.3 | |
| 1.05 | 2.01 | 0.86 | 1.65 | 26.48 | 44.20 | -51.40 | 61.21 | 0.8004 | 448.9 | 392.5 | |
| 0.00 | 5.25 | 0.00 | 4.13 | 23.60 | 45.69 | -49.90 | 64.41 | 0.7795 | 857.0 | 551.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
