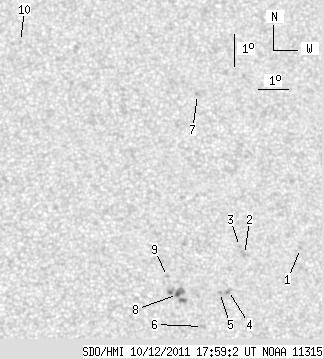

SDO HMI 2011-10-12 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.57 | 28.58 | 0.82 | 15.04 | 20.28 | 109.27 | 13.68 | 318.07 | 0.3357 | 296.9 | 405.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 0.84 | 20.73 | 112.65 | 17.06 | 313.19 | 0.3779 | -579.0 | -487.7 | |
| 0.00 | 3.93 | 0.00 | 2.08 | 20.60 | 110.77 | 15.18 | 316.06 | 0.3548 | -890.0 | -592.4 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 20.85 | 110.63 | 15.04 | 316.84 | 0.3560 | -911.0 | -704.2 | |
| 0.00 | 2.45 | 0.00 | 1.29 | 19.50 | 110.14 | 14.55 | 314.86 | 0.3355 | 824.0 | 646.9 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 19.45 | 109.84 | 14.25 | 315.31 | 0.3314 | 502.0 | 459.8 | |
| 0.00 | 2.19 | 0.00 | 1.14 | 18.42 | 109.20 | 13.60 | 314.17 | 0.3125 | 741.0 | 606.8 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 25.64 | 109.76 | 14.16 | 326.86 | 0.4053 | 833.0 | 617.6 | |
| 1.57 | 12.07 | 0.82 | 6.30 | 19.42 | 108.47 | 12.87 | 318.02 | 0.3155 | 1104.0 | 867.1 | |
| 0.00 | 1.66 | 0.00 | 0.87 | 19.98 | 108.19 | 12.59 | 319.85 | 0.3192 | 718.0 | 501.3 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 27.45 | 103.90 | 8.31 | 340.67 | 0.3891 | 772.0 | 590.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
