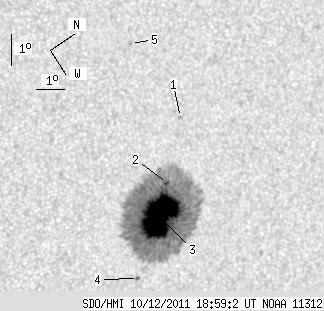

SDO HMI 2011-10-12 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.30 | 527.97 | 58.31 | 301.00 | 23.12 | 120.19 | 25.15 | 307.74 | 0.4963 | -1426.5 | -399.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.85 | 25.46 | 118.19 | 23.14 | 313.74 | 0.4932 | -744.0 | -603.7 | |
| 1.75 | 523.07 | 1.00 | 298.23 | 23.89 | 119.58 | 24.54 | 309.66 | 0.4953 | -831.4 | -403.9 | |
| 99.68 | -2.00 | 56.81 | -2.00 | 23.10 | 120.22 | 25.18 | 307.67 | 0.4964 | -1540.9 | 999999 | |
| 0.87 | 1.57 | 0.50 | 0.90 | 21.41 | 121.35 | 26.31 | 303.66 | 0.4977 | 620.0 | 575.5 | |
| 0.00 | 1.84 | 0.00 | 1.02 | 25.56 | 115.02 | 19.98 | 317.75 | 0.4604 | 728.0 | 513.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
