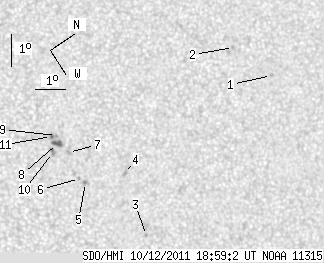

SDO HMI 2011-10-12 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.94 | 27.72 | 3.11 | 14.61 | 20.34 | 109.40 | 14.35 | 316.89 | 0.3429 | 610.2 | 441.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 0.86 | 26.17 | 111.40 | 16.36 | 323.97 | 0.4315 | 926.0 | 690.9 | |
| 0.00 | 1.49 | 0.00 | 0.81 | 25.70 | 109.81 | 14.76 | 325.90 | 0.4113 | 830.0 | 708.1 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 20.08 | 112.77 | 17.72 | 310.80 | 0.3794 | -809.0 | -651.1 | |
| 0.00 | 2.62 | 0.00 | 1.39 | 20.64 | 110.71 | 15.66 | 315.30 | 0.3607 | -805.0 | -756.4 | |
| 0.00 | 2.54 | 0.00 | 1.34 | 19.50 | 110.12 | 15.08 | 313.87 | 0.3417 | 846.0 | 617.4 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 19.42 | 109.90 | 14.85 | 314.10 | 0.3381 | 777.0 | 585.6 | |
| 0.00 | 2.19 | 0.00 | 1.15 | 19.61 | 109.01 | 13.96 | 316.20 | 0.3299 | 757.0 | 597.5 | |
| 4.63 | 11.02 | 2.42 | 5.76 | 19.49 | 108.55 | 13.51 | 316.85 | 0.3234 | 936.1 | 683.6 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 19.61 | 108.33 | 13.28 | 317.57 | 0.3222 | 952.0 | 839.0 | |
| 0.00 | 2.97 | 0.00 | 1.55 | 19.21 | 108.68 | 13.64 | 315.94 | 0.3216 | 968.0 | 836.6 | |
| 1.31 | -8.00 | 0.69 | -8.00 | 19.46 | 108.25 | 13.21 | 317.41 | 0.3197 | 989.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
