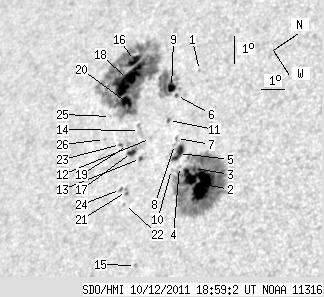

SDO HMI 2011-10-12 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.84 | 563.56 | 89.56 | 432.13 | -12.28 | 48.59 | -46.46 | 111.80 | 0.7642 | 53.3 | -17.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.40 | -10.33 | 47.98 | -47.07 | 109.08 | 0.7645 | -579.0 | -503.3 | |
| 43.11 | 228.57 | 31.18 | 165.07 | -12.03 | 51.70 | -43.35 | 112.81 | 0.7307 | 965.7 | 346.9 | |
| 1.14 | -2.00 | 0.83 | -2.00 | -11.91 | 51.09 | -43.95 | 112.39 | 0.7368 | 278.0 | 999999 | |
| 0.00 | 1.66 | 0.00 | 1.23 | -12.31 | 50.58 | -44.46 | 112.66 | 0.7439 | 364.0 | 242.2 | |
| 8.31 | 11.72 | 6.18 | 8.72 | -12.14 | 50.13 | -44.92 | 112.25 | 0.7481 | 585.5 | 255.1 | |
| 1.14 | 1.66 | 0.87 | 1.28 | -11.35 | 48.12 | -46.92 | 110.41 | 0.7664 | 514.4 | 452.0 | |
| 0.00 | 1.40 | 0.00 | 1.05 | -11.98 | 49.57 | -45.47 | 111.80 | 0.7534 | 537.0 | 501.0 | |
| 0.00 | 1.22 | 0.00 | 0.92 | -12.12 | 49.71 | -45.33 | 112.04 | 0.7525 | 374.0 | 319.4 | |
| 5.16 | 39.52 | 4.00 | 30.76 | -11.37 | 47.69 | -47.35 | 110.27 | 0.7709 | 525.3 | -207.7 | |
| 0.00 | 0.79 | 0.00 | 0.58 | -12.58 | 50.44 | -44.60 | 112.94 | 0.7465 | 382.0 | 268.3 | |
| 0.70 | 1.92 | 0.53 | 1.47 | -11.94 | 48.72 | -46.32 | 111.39 | 0.7622 | 347.9 | 328.5 | |
| 0.00 | 1.40 | 0.00 | 1.07 | -12.72 | 48.76 | -46.28 | 112.37 | 0.7647 | -245.0 | -224.0 | |
| 1.49 | 1.75 | 1.13 | 1.33 | -13.30 | 49.12 | -45.93 | 113.25 | 0.7633 | 445.0 | 437.0 | |
| 0.00 | 5.60 | 0.00 | 4.34 | -12.92 | 48.14 | -46.90 | 112.35 | 0.7718 | -658.0 | -485.7 | |
| 0.00 | 1.40 | 0.00 | 1.02 | -15.06 | 52.41 | -42.63 | 117.02 | 0.7365 | 555.0 | 451.9 | |
| 6.56 | 246.06 | 5.33 | 198.70 | -12.04 | 45.55 | -49.50 | 110.26 | 0.7950 | -529.0 | -308.0 | |
| 3.41 | 7.00 | 2.63 | 5.39 | -13.47 | 48.63 | -46.41 | 113.24 | 0.7689 | 493.6 | 90.5 | |
| 36.64 | -16.00 | 29.59 | -16.00 | -12.51 | 45.99 | -49.06 | 111.00 | 0.7921 | -867.4 | 999999 | |
| 0.00 | 2.89 | 0.00 | 2.24 | -13.48 | 48.26 | -46.78 | 113.10 | 0.7727 | -241.0 | -119.2 | |
| 7.78 | -16.00 | 6.20 | -16.00 | -12.88 | 46.76 | -48.28 | 111.74 | 0.7857 | -1035.1 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.86 | -14.20 | 49.76 | -45.28 | 114.64 | 0.7602 | 816.0 | 623.8 | |
| 0.00 | 0.96 | 0.00 | 0.73 | -14.45 | 50.12 | -44.92 | 115.12 | 0.7576 | 221.0 | 312.3 | |
| 1.40 | 1.66 | 1.09 | 1.30 | -13.67 | 48.00 | -47.04 | 113.21 | 0.7760 | 276.7 | 45.7 | |
| 0.00 | 1.57 | 0.00 | 1.20 | -14.34 | 49.50 | -45.54 | 114.70 | 0.7634 | 420.0 | 339.4 | |
| 0.00 | 1.14 | 0.00 | 0.91 | -13.55 | 46.71 | -48.33 | 112.53 | 0.7885 | -610.0 | -545.7 | |
| 0.00 | 0.70 | 0.00 | 0.56 | -14.06 | 47.30 | -47.74 | 113.39 | 0.7845 | 292.0 | 199.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
