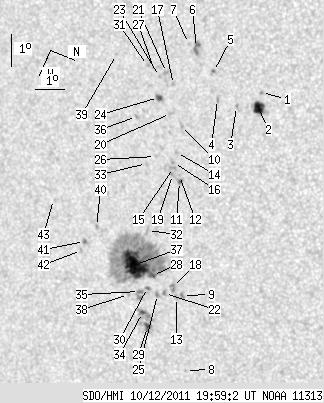

SDO HMI 2011-10-12 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.67 | 300.02 | 37.10 | 175.07 | -14.62 | 118.90 | 24.41 | 229.13 | 0.5302 | 407.0 | 292.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.72 | -12.88 | 112.72 | 18.23 | 223.66 | 0.4436 | 934.0 | 783.9 | |
| 9.27 | 13.03 | 5.13 | 7.21 | -12.81 | 113.20 | 18.71 | 224.53 | 0.4480 | 1076.1 | 568.9 | |
| 0.00 | 1.75 | 0.00 | 0.97 | -13.47 | 113.50 | 19.01 | 223.93 | 0.4585 | 833.0 | 634.8 | |
| 0.00 | 2.10 | 0.00 | 1.17 | -14.12 | 113.58 | 19.09 | 223.06 | 0.4665 | -687.0 | -456.8 | |
| 0.00 | 1.75 | 0.00 | 0.98 | -14.55 | 112.82 | 18.33 | 221.27 | 0.4635 | -977.0 | -719.5 | |
| 0.00 | 6.12 | 0.00 | 3.43 | -15.33 | 112.38 | 17.89 | 219.46 | 0.4681 | -1171.0 | -920.5 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -15.62 | 112.39 | 17.90 | 219.07 | 0.4715 | -581.0 | -429.9 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -12.15 | 122.19 | 27.69 | 236.50 | 0.5470 | 740.0 | 586.8 | |
| 0.00 | 2.10 | 0.00 | 1.22 | -13.03 | 119.95 | 25.46 | 232.86 | 0.5274 | 1006.0 | 813.0 | |
| 0.00 | 1.84 | 0.00 | 1.04 | -14.91 | 114.90 | 20.41 | 223.78 | 0.4890 | -837.0 | -701.5 | |
| 0.52 | 1.49 | 0.30 | 0.85 | -14.35 | 116.58 | 22.09 | 226.86 | 0.5013 | -848.3 | -790.8 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -14.42 | 116.40 | 21.91 | 226.53 | 0.5000 | -940.0 | -723.6 | |
| 0.00 | 2.10 | 0.00 | 1.22 | -13.19 | 120.11 | 25.62 | 232.78 | 0.5307 | 559.0 | 469.1 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -14.76 | 115.77 | 21.28 | 225.19 | 0.4967 | -733.0 | -581.2 | |
| 0.00 | 2.36 | 0.00 | 1.35 | -14.69 | 116.26 | 21.77 | 225.95 | 0.5012 | -859.0 | -740.9 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -14.74 | 116.11 | 21.62 | 225.67 | 0.5002 | -955.0 | -784.3 | |
| 0.00 | 1.66 | 0.00 | 0.94 | -15.61 | 113.82 | 19.33 | 221.24 | 0.4856 | -886.0 | -631.3 | |
| 0.00 | 4.28 | 0.00 | 2.50 | -13.42 | 119.87 | 25.38 | 232.18 | 0.5299 | 896.0 | 835.4 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -14.64 | 116.49 | 22.00 | 226.31 | 0.5032 | -529.0 | -429.5 | |
| 0.00 | 1.66 | 0.00 | 0.94 | -15.38 | 114.72 | 20.23 | 222.85 | 0.4921 | -722.0 | -546.3 | |
| 0.00 | 2.97 | 0.00 | 1.68 | -15.96 | 113.57 | 19.08 | 220.40 | 0.4871 | -888.0 | -701.2 | |
| 0.00 | 2.71 | 0.00 | 1.59 | -13.59 | 120.18 | 25.69 | 232.25 | 0.5351 | 992.0 | 787.1 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -16.12 | 113.80 | 19.31 | 220.50 | 0.4912 | -657.0 | -547.8 | |
| 2.80 | 3.24 | 1.59 | 1.84 | -15.92 | 114.43 | 19.94 | 221.69 | 0.4952 | -895.8 | -866.2 | |
| 0.00 | 2.71 | 0.00 | 1.59 | -13.79 | 120.33 | 25.84 | 232.10 | 0.5385 | 789.0 | 659.8 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -15.35 | 116.22 | 21.73 | 224.93 | 0.5077 | -637.0 | -444.0 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -16.41 | 113.63 | 19.14 | 219.86 | 0.4928 | -586.0 | -522.4 | |
| 3.24 | 191.67 | 1.90 | 112.63 | -14.15 | 119.84 | 25.35 | 231.04 | 0.5360 | 908.5 | 422.1 | |
| 3.41 | 20.20 | 2.02 | 11.97 | -13.75 | 121.47 | 26.98 | 233.35 | 0.5515 | 755.5 | 485.5 | |
| 0.35 | 1.75 | 0.21 | 1.03 | -14.17 | 120.29 | 25.79 | 231.49 | 0.5413 | 827.2 | 705.9 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -16.61 | 113.67 | 19.18 | 219.64 | 0.4954 | -710.0 | -575.5 | |
| 0.00 | 3.24 | 0.00 | 1.88 | -14.78 | 118.56 | 24.07 | 228.65 | 0.5274 | 263.0 | 200.6 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -15.55 | 116.58 | 22.09 | 225.11 | 0.5134 | -535.0 | -466.5 | |
| 1.84 | -29.00 | 1.09 | -29.00 | -14.05 | 121.13 | 26.64 | 232.55 | 0.5500 | 831.0 | 999999 | |
| 1.84 | 5.16 | 1.08 | 3.05 | -14.37 | 120.54 | 26.05 | 231.47 | 0.5460 | 774.1 | 602.1 | |
| 0.00 | 1.75 | 0.00 | 1.01 | -16.38 | 115.35 | 20.86 | 222.32 | 0.5094 | -682.0 | -526.5 | |
| 38.91 | -28.00 | 22.89 | -28.00 | -14.78 | 119.79 | 25.30 | 230.05 | 0.5411 | 1135.0 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -14.67 | 120.82 | 26.33 | 231.32 | 0.5518 | 212.0 | 200.8 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -17.69 | 113.84 | 19.35 | 218.48 | 0.5094 | -655.0 | -565.8 | |
| 0.00 | 1.92 | 0.00 | 1.14 | -16.38 | 119.31 | 24.82 | 227.23 | 0.5507 | 679.0 | 455.2 | |
| 1.49 | 2.27 | 0.89 | 1.36 | -16.59 | 119.97 | 25.48 | 227.69 | 0.5597 | 681.6 | 492.1 | |
| 0.00 | 1.57 | 0.00 | 0.94 | -16.58 | 120.30 | 25.81 | 228.06 | 0.5631 | 662.0 | 551.3 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -18.00 | 119.25 | 24.76 | 224.97 | 0.5657 | 431.0 | 441.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
