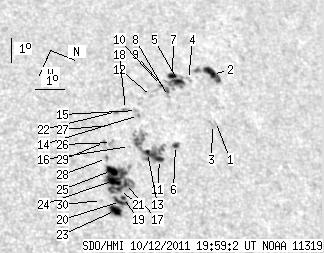

SDO HMI 2011-10-12 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.76 | 185.74 | 41.12 | 129.71 | 9.88 | 49.44 | -45.05 | 82.08 | 0.7058 | -120.8 | -35.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.70 | 11.35 | 47.08 | -47.41 | 80.13 | 0.7350 | 640.0 | 595.7 | |
| 11.63 | 15.83 | 8.75 | 11.90 | 10.58 | 45.30 | -49.19 | 81.24 | 0.7551 | 643.8 | 565.0 | |
| 0.00 | 3.59 | 0.00 | 2.60 | 11.31 | 47.27 | -47.23 | 80.17 | 0.7328 | 923.0 | 617.0 | |
| 0.00 | 2.19 | 0.00 | 1.62 | 10.03 | 46.06 | -48.43 | 81.96 | 0.7464 | 256.0 | 260.9 | |
| 3.85 | 20.02 | 2.84 | 14.75 | 9.80 | 46.36 | -48.13 | 82.26 | 0.7428 | 742.9 | 517.8 | |
| 2.62 | 3.59 | 1.85 | 2.53 | 10.65 | 48.89 | -45.60 | 81.02 | 0.7132 | -482.7 | -343.6 | |
| 3.50 | -5.00 | 2.58 | -5.00 | 9.55 | 46.26 | -48.23 | 82.59 | 0.7440 | 486.0 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.76 | 9.75 | 47.17 | -47.32 | 82.31 | 0.7334 | 627.0 | 532.8 | |
| 0.00 | 2.54 | 0.00 | 1.85 | 9.64 | 46.96 | -47.53 | 82.47 | 0.7358 | 867.0 | 753.5 | |
| 0.00 | 1.57 | 0.00 | 1.15 | 9.41 | 46.90 | -47.59 | 82.78 | 0.7366 | 722.0 | 638.9 | |
| 3.59 | 42.50 | 2.49 | 29.57 | 10.43 | 49.76 | -44.73 | 81.29 | 0.7026 | -635.7 | 17.0 | |
| 0.00 | 1.31 | 0.00 | 0.95 | 9.31 | 47.55 | -46.94 | 82.91 | 0.7290 | 174.0 | 164.5 | |
| 1.92 | -11.00 | 1.33 | -11.00 | 10.01 | 49.75 | -44.74 | 81.88 | 0.7025 | 394.2 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.87 | 9.24 | 48.55 | -45.94 | 82.99 | 0.7169 | 723.0 | 601.6 | |
| 0.00 | 1.66 | 0.00 | 1.18 | 9.12 | 48.40 | -46.09 | 83.17 | 0.7187 | 718.0 | 532.3 | |
| 0.00 | 0.79 | 0.00 | 0.54 | 9.45 | 49.91 | -44.59 | 82.68 | 0.7005 | 585.0 | 486.3 | |
| 1.57 | 55.09 | 1.06 | 37.23 | 9.87 | 51.35 | -43.15 | 82.02 | 0.6827 | -649.5 | -432.9 | |
| 0.00 | 2.71 | 0.00 | 1.92 | 8.81 | 48.60 | -45.89 | 83.59 | 0.7163 | -332.0 | -95.3 | |
| 1.49 | 20.11 | 1.00 | 13.39 | 10.01 | 51.89 | -42.60 | 81.78 | 0.6758 | -539.2 | -653.0 | |
| 4.81 | -19.00 | 3.21 | -19.00 | 9.99 | 52.10 | -42.40 | 81.80 | 0.6732 | -789.3 | 999999 | |
| 0.96 | -17.00 | 0.65 | -17.00 | 9.81 | 51.72 | -42.77 | 82.09 | 0.6779 | -779.3 | 999999 | |
| 0.96 | 1.84 | 0.68 | 1.29 | 8.61 | 48.86 | -45.63 | 83.88 | 0.7132 | -409.4 | -317.7 | |
| 7.43 | -19.00 | 4.93 | -19.00 | 9.99 | 52.52 | -41.97 | 81.79 | 0.6678 | -942.4 | 999999 | |
| 7.61 | -17.00 | 5.13 | -17.00 | 9.51 | 51.48 | -43.01 | 82.54 | 0.6808 | -926.5 | 999999 | |
| 6.82 | -17.00 | 4.62 | -17.00 | 9.32 | 51.16 | -43.34 | 82.84 | 0.6849 | -687.0 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.39 | 8.92 | 50.13 | -44.36 | 83.43 | 0.6977 | -384.0 | -315.9 | |
| 0.00 | 0.70 | 0.00 | 0.49 | 8.62 | 49.53 | -44.96 | 83.86 | 0.7050 | -422.0 | -330.6 | |
| 0.00 | 2.01 | 0.00 | 1.37 | 9.01 | 50.82 | -43.67 | 83.28 | 0.6891 | -634.0 | -489.9 | |
| 0.00 | 1.40 | 0.00 | 0.96 | 8.73 | 50.27 | -44.22 | 83.70 | 0.6959 | -621.0 | -557.1 | |
| 0.00 | 1.05 | 0.00 | 0.70 | 9.47 | 52.44 | -42.05 | 82.56 | 0.6686 | -669.0 | -542.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
