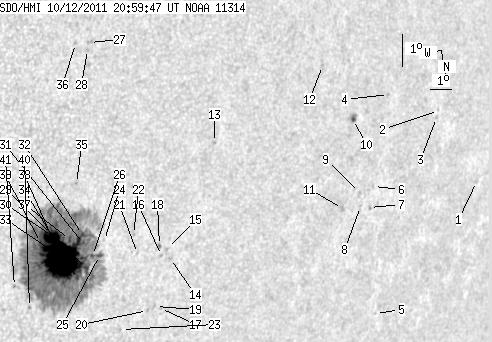

SDO HMI 2011-10-12 20:59:47 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 135.87 | 693.52 | 87.96 | 450.92 | 26.91 | 57.64 | -36.29 | 54.59 | 0.6491 | -933.2 | -322.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 20:59:47 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.66 | 0.00 | 1.48 | 25.84 | 38.56 | -55.37 | 62.88 | 0.8343 | 90.0 | 189.0 | |
| 0.00 | 0.79 | 0.00 | 0.65 | 23.58 | 41.32 | -52.62 | 65.03 | 0.8055 | 433.0 | 354.8 | |
| 0.00 | 0.96 | 0.00 | 0.80 | 23.80 | 41.37 | -52.56 | 64.76 | 0.8054 | 496.0 | 370.9 | |
| 0.00 | 1.14 | 0.00 | 0.89 | 22.99 | 44.04 | -49.89 | 65.18 | 0.7781 | 663.0 | 488.4 | |
| 0.00 | 0.79 | 0.00 | 0.66 | 29.81 | 42.84 | -51.09 | 57.11 | 0.8064 | 407.0 | 380.2 | |
| 0.00 | 0.96 | 0.00 | 0.76 | 25.80 | 44.19 | -49.74 | 61.61 | 0.7832 | 557.0 | 407.4 | |
| 0.00 | 1.57 | 0.00 | 1.25 | 26.45 | 44.23 | -49.70 | 60.80 | 0.7846 | 528.0 | 499.2 | |
| 0.00 | 1.14 | 0.00 | 0.90 | 26.40 | 44.71 | -49.22 | 60.73 | 0.7799 | 586.0 | 475.8 | |
| 0.00 | 1.22 | 0.00 | 0.96 | 25.96 | 44.87 | -49.06 | 61.23 | 0.7772 | 475.0 | 438.3 | |
| 1.49 | 5.16 | 1.14 | 3.94 | 23.68 | 45.65 | -48.28 | 63.90 | 0.7635 | 622.1 | 460.1 | |
| 0.00 | 2.45 | 0.00 | 1.90 | 26.41 | 45.61 | -48.32 | 60.44 | 0.7713 | 385.0 | 362.1 | |
| 0.00 | 1.31 | 0.00 | 0.96 | 21.94 | 47.41 | -46.52 | 65.69 | 0.7409 | 622.0 | 381.7 | |
| 0.00 | 1.22 | 0.00 | 0.84 | 23.99 | 52.06 | -41.87 | 61.40 | 0.6968 | 517.0 | 418.7 | |
| 0.00 | 1.49 | 0.00 | 1.02 | 27.47 | 53.50 | -40.43 | 56.05 | 0.6960 | -650.0 | -588.7 | |
| 0.00 | 1.05 | 0.00 | 0.72 | 27.15 | 53.69 | -40.24 | 56.40 | 0.6925 | -679.0 | -610.0 | |
| 0.00 | 1.05 | 0.00 | 0.72 | 27.35 | 53.92 | -40.01 | 56.02 | 0.6910 | -709.0 | -541.8 | |
| 0.00 | 1.05 | 0.00 | 0.73 | 29.03 | 53.66 | -40.27 | 53.91 | 0.7017 | -458.0 | -389.3 | |
| 0.00 | 1.57 | 0.00 | 1.07 | 27.02 | 54.06 | -39.87 | 56.39 | 0.6880 | -725.0 | -677.7 | |
| 0.00 | 1.31 | 0.00 | 0.91 | 28.94 | 53.90 | -40.03 | 53.90 | 0.6989 | -583.0 | -480.4 | |
| 0.00 | 0.96 | 0.00 | 0.66 | 29.04 | 54.24 | -39.69 | 53.60 | 0.6960 | -733.0 | -552.3 | |
| 0.00 | 0.87 | 0.00 | 0.59 | 27.20 | 55.00 | -38.94 | 55.69 | 0.6790 | -547.0 | -423.2 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 26.59 | 55.26 | -38.68 | 56.40 | 0.6732 | -332.0 | -361.7 | |
| 0.00 | 0.79 | 0.00 | 0.54 | 29.56 | 55.30 | -38.63 | 52.36 | 0.6881 | -530.0 | -422.4 | |
| 0.00 | 0.35 | 0.00 | 0.23 | 26.67 | 56.49 | -37.45 | 55.65 | 0.6604 | -398.0 | -267.8 | |
| 2.36 | 653.75 | 1.55 | 422.07 | 27.12 | 56.64 | -37.29 | 54.93 | 0.6612 | -377.1 | -353.2 | |
| 1.14 | -25.00 | 0.75 | -25.00 | 27.10 | 56.94 | -36.99 | 54.80 | 0.6578 | -366.6 | 999999 | |
| 0.00 | 1.92 | 0.00 | 1.21 | 20.49 | 57.54 | -36.39 | 64.23 | 0.6194 | -765.0 | -554.3 | |
| 0.00 | 1.75 | 0.00 | 1.10 | 20.69 | 57.62 | -36.31 | 63.87 | 0.6193 | -731.0 | -491.2 | |
| 2.01 | -25.00 | 1.32 | -25.00 | 27.49 | 57.14 | -36.79 | 54.15 | 0.6577 | -386.1 | 999999 | |
| 1.92 | -25.00 | 1.26 | -25.00 | 27.13 | 57.32 | -36.62 | 54.55 | 0.6539 | -506.6 | 999999 | |
| 0.87 | -25.00 | 0.57 | -25.00 | 26.69 | 57.37 | -36.56 | 55.14 | 0.6509 | -487.9 | 999999 | |
| 1.92 | -25.00 | 1.25 | -25.00 | 26.40 | 57.44 | -36.49 | 55.50 | 0.6486 | -717.1 | 999999 | |
| 0.87 | -25.00 | 0.57 | -25.00 | 27.53 | 57.39 | -36.54 | 53.95 | 0.6553 | -387.0 | 999999 | |
| 1.05 | -25.00 | 0.69 | -25.00 | 27.77 | 57.49 | -36.44 | 53.56 | 0.6557 | -306.8 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.62 | 24.78 | 57.85 | -36.08 | 57.61 | 0.6356 | 717.0 | 589.7 | |
| 0.00 | 1.14 | 0.00 | 0.71 | 20.47 | 58.10 | -35.83 | 64.01 | 0.6124 | -780.0 | -560.0 | |
| 2.27 | -25.00 | 1.47 | -25.00 | 26.51 | 57.97 | -35.96 | 55.05 | 0.6434 | -833.5 | 999999 | |
| 119.10 | -25.00 | 76.83 | -25.00 | 27.01 | 58.29 | -35.64 | 54.15 | 0.6427 | -1340.1 | 999999 | |
| 0.87 | -25.00 | 0.56 | -25.00 | 26.49 | 59.17 | -34.76 | 54.36 | 0.6301 | -1542.4 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.84 | 28.50 | 59.41 | -34.52 | 51.37 | 0.6398 | 670.0 | 540.6 | |
| 0.00 | 0.96 | 0.00 | 0.61 | 27.77 | 60.11 | -33.82 | 51.93 | 0.6278 | 284.0 | 155.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
