SDO HMI 2011-10-12 20:59:47 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.78 | 114.89 | 23.90 | 58.77 | 20.11 | 97.28 | 3.35 | 347.05 | 0.2504 | -416.1 | 149.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 20:59:47 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

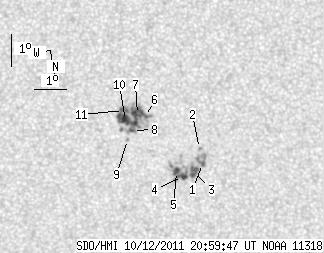

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.05 | 49.58 | 0.54 | 25.45 | 21.05 | 95.98 | 2.05 | 352.65 | 0.2618 | 1058.2 | 827.2 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 20.57 | 95.97 | 2.04 | 352.42 | 0.2539 | 1015.0 | 840.9 | |
| 4.81 | -1.00 | 2.47 | -1.00 | 21.23 | 96.31 | 2.38 | 351.58 | 0.2657 | 1013.2 | 999999 | |
| 4.46 | -1.00 | 2.29 | -1.00 | 21.32 | 96.69 | 2.76 | 350.32 | 0.2681 | 974.3 | 999999 | |
| 3.85 | -1.00 | 1.98 | -1.00 | 21.13 | 96.85 | 2.92 | 349.65 | 0.2654 | 1076.5 | 999999 | |
| 0.70 | 62.52 | 0.36 | 31.88 | 19.27 | 97.44 | 3.51 | 345.83 | 0.2369 | -1107.0 | -667.8 | |
| 12.33 | -6.00 | 6.28 | -6.00 | 19.16 | 97.67 | 3.74 | 344.80 | 0.2361 | -1165.5 | 999999 | |
| 1.92 | -6.00 | 0.98 | -6.00 | 19.61 | 97.94 | 4.01 | 344.33 | 0.2447 | -745.9 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 19.85 | 98.16 | 4.22 | 343.81 | 0.2496 | -767.0 | -533.1 | |
| 13.38 | -6.00 | 6.82 | -6.00 | 19.27 | 98.08 | 4.15 | 343.35 | 0.2397 | -1043.3 | 999999 | |
| 4.28 | -6.00 | 2.18 | -6.00 | 18.96 | 98.08 | 4.15 | 342.98 | 0.2346 | -1012.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
