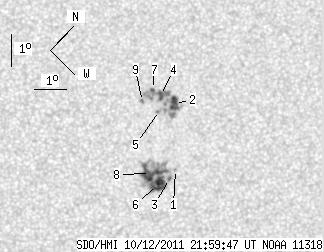

SDO HMI 2011-10-12 21:59:47 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.10 | 112.90 | 24.60 | 57.78 | 20.01 | 97.35 | 3.97 | 344.73 | 0.2514 | -378.5 | 130.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-12 21:59:47 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.58 | 19.84 | 98.22 | 4.84 | 341.60 | 0.2525 | -767.0 | -582.8 | |
| 8.48 | 42.24 | 4.36 | 21.70 | 21.27 | 96.74 | 3.36 | 348.25 | 0.2693 | 1012.6 | 871.4 | |
| 1.40 | 65.85 | 0.72 | 33.61 | 19.52 | 98.27 | 4.90 | 340.95 | 0.2476 | -715.0 | -597.7 | |
| 3.85 | -2.00 | 1.98 | -2.00 | 21.15 | 96.24 | 2.86 | 349.87 | 0.2656 | 1059.8 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 20.79 | 96.55 | 3.17 | 348.52 | 0.2608 | 854.0 | 844.4 | |
| 15.22 | -3.00 | 7.76 | -3.00 | 19.13 | 98.13 | 4.75 | 340.94 | 0.2406 | -1081.7 | 999999 | |
| 1.57 | -2.00 | 0.81 | -2.00 | 21.10 | 95.92 | 2.54 | 350.95 | 0.2640 | 861.4 | 999999 | |
| 17.58 | -3.00 | 8.97 | -3.00 | 19.22 | 97.73 | 4.35 | 342.56 | 0.2399 | -1113.9 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 20.62 | 95.96 | 2.58 | 350.50 | 0.2561 | 1156.0 | 934.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
